Located in Houston, Texas, Shawn Flanges is a top producer and supplier of high-end stainless steel spades and ring spacer flanges, providing precisely engineered solutions for a variety of piping applications. Shawn Flanges, a company known for its dependability and quality, serves international industries in need of reliable flow isolation and maintenance equipment. These flanges enable safe line-breaking and inspection without interfering with the pipeline system as a whole, making them ideal for critical service environments. The company is dedicated to providing clients in the oil and gas, petrochemical, and power sectors with superior performance, durability, and on-time delivery by using advanced production techniques and adhering to international standards.
High-grade alloys with chromium (18–20%), nickel (8–12%), and molybdenum (2–3%) are commonly used to make stainless steel spades and ring spacers because they offer exceptional resistance to oxidation and corrosion. Mechanical strength is increased by additional elements such as silicon, carbon, and manganese. These parts have an elongation of up to 40%, a yield strength of 200–300 MPa, and a tensile strength of 500–700 MPa. They provide remarkable durability and mechanical integrity while remaining stable in the face of extreme pressures and temperatures. They are therefore appropriate for demanding applications in high-stress and corrosive environments.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.48, Series A & B, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.48/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

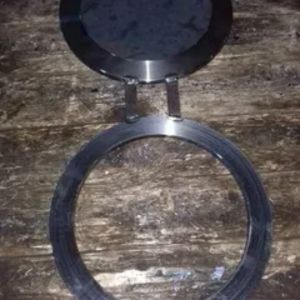

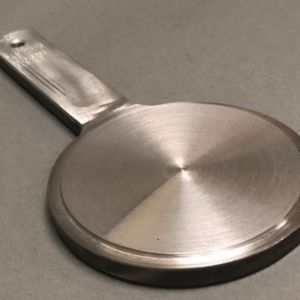

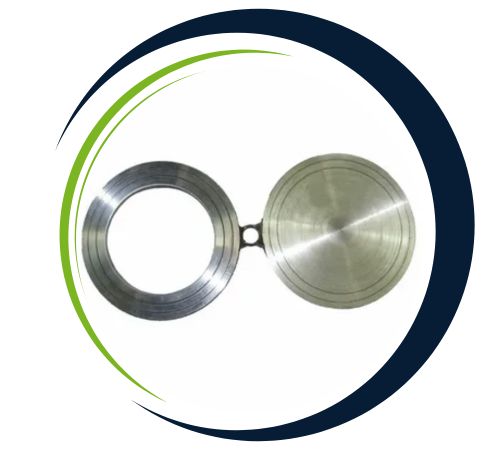

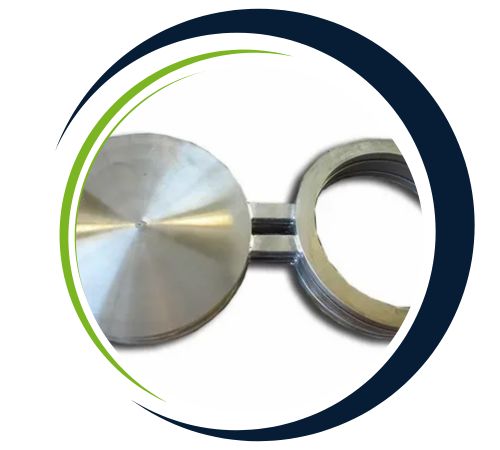

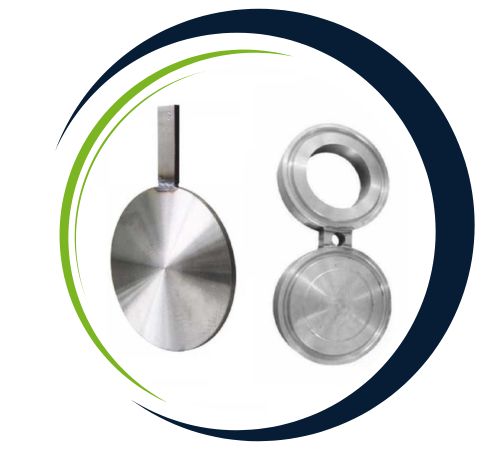

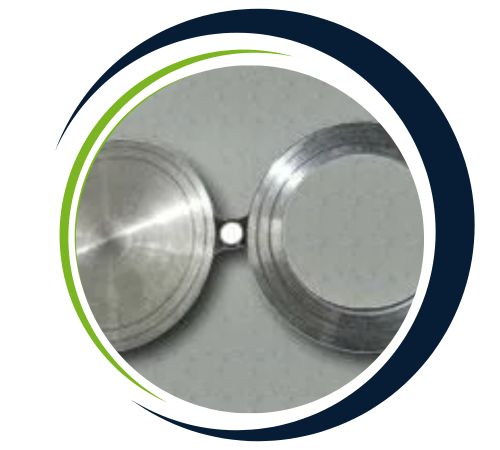

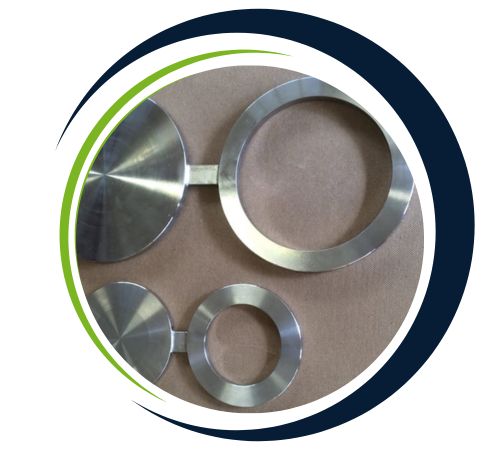

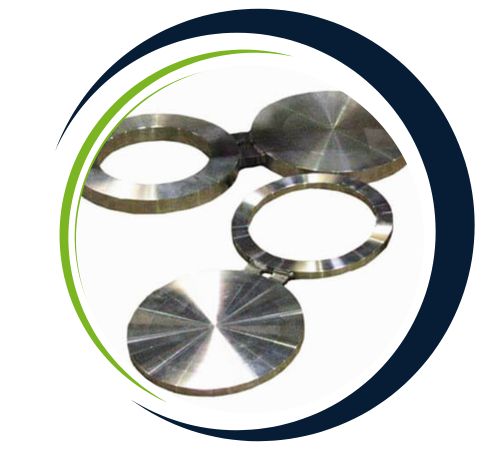

| Material | Brass Spades Ring Spacers Flange, Hastelloy Spades Ring Spacers Flange, Super Duplex Spades Ring Spacers Flange, Nickel Alloy Spades Ring Spacers Flange, Inconel Spades Ring Spacers Flange, Duplex Steel Spades Ring Spacers Flange, SMO 254 Spades Ring Spacers Flange, Stainless Steel Spades Ring Spacers Flange, AISI 4130 Spades Ring Spacers Flange, Copper Nickel Spades Ring Spacers Flange, Monel Spades Ring Spacers Flange, Alloy 20 Spades Ring Spacers Flange, Incoloy Spades Ring Spacers Flange, Titanium Spades Ring Spacers Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Spades and Ring Spacers Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Ring spacers and spades made of stainless steel Flanges are necessary for short-term pipeline isolation, which is usually employed for system shutdowns, pressure tests, and maintenance. They are extremely useful in systems that need to be inspected or serviced on a regular basis because they work by inserting the ring spacer to permit flow or the spade to block it. These parts, which are frequently found in petrochemical facilities, power generation facilities, oil and gas refineries, and offshore platforms, offer a dependable and safe way to isolate portions of pipes without having to disassemble entire piping assemblies. Long-term performance under demanding industrial conditions is guaranteed by their sturdy design and resistance to corrosion.
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 16 | 45 | 60 | 3 | 38 | 2 | 15.875 | 0.07 | 0.03 | 0.03 |
| 3/4 | 20 | 21 | 54 | 70 | 3 | 38 | 2 | 15.875 | 0.1 | 0.05 | 0.04 |
| 1 | 25 | 27 | 64 | 80 | 3 | 38 | 2 | 15.875 | 0.14 | 0.07 | 0.06 |
| 1 1/4 | 32 | 42 | 73 | 90 | 6.4 | 38 | 4 | 15.875 | 0.35 | 0.21 | 0.14 |
| 1 1/2 | 40 | 48 | 83 | 100 | 6.4 | 38 | 4 | 15.875 | 0.46 | 0.27 | 0.18 |
| 2 | 50 | 61 | 102 | 120 | 6.4 | 51 | 4 | 19.05 | 0.68 | 0.41 | 0.26 |
| 2 1/2 | 65 | 73 | 107 | 140 | 6.4 | 51 | 4 | 19.05 | 0.7 | 0.46 | 0.24 |
| 3 | 80 | 89 | 133 | 150 | 6.4 | 64 | 4 | 19.05 | 1.1 | 0.71 | 0.39 |
| 3 1/2 | 90 | 102 | 159 | 175 | 9.7 | 64 | 5 | 19.05 | 2.44 | 1.54 | 0.9 |
| 4 | 100 | 114 | 172 | 190 | 9.7 | 64 | 5 | 19.05 | 2.81 | 1.8 | 1.01 |
| 5 | 130 | 141 | 194 | 215 | 9.7 | 76 | 5 | 22.225 | 3.37 | 2.29 | 1.08 |
| 6 | 150 | 168 | 219 | 240 | 12.7 | 76 | 7 | 22.225 | 5.39 | 3.82 | 1.57 |
| 8 | 200 | 219 | 276 | 300 | 12.7 | 76 | 10 | 22.225 | 8.32 | 6.07 | 2.25 |
| 10 | 250 | 273 | 337 | 360 | 15.7 | 102 | 12 | 25.4 | 15.04 | 11.19 | 3.84 |
| 12 | 300 | 324 | 406 | 430 | 19.1 | 102 | 15 | 25.4 | 26.95 | 19.77 | 7.18 |
| 14 | 350 | 356 | 448 | 475 | 19.1 | 108 | 15 | 28.575 | 32.94 | 24.07 | 8.87 |
| 16 | 400 | 406 | 511 | 540 | 22.4 | 108 | 17 | 28.575 | 50.27 | 36.73 | 13.54 |
| 18 | 450 | 457 | 546 | 580 | 25.4 | 114 | 20 | 31.75 | 61.79 | 47.55 | 14.23 |
| 20 | 500 | 508 | 603 | 635 | 28.4 | 121 | 22 | 31.75 | 83.67 | 64.85 | 18.82 |
| 24 | 600 | 610 | 714 | 750 | 31.8 | 140 | 24 | 34.925 | 129.3 | 101.8 | 27.49 |
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 16 | 51 | 65 | 6.4 | 38 | 4 | 15.875 | 0.19 | 0.1 | 0.09 |
| 3/4 | 20 | 21 | 64 | 80 | 6.4 | 38 | 4 | 19.05 | 0.31 | 0.16 | 0.14 |
| 1 | 25 | 27 | 70 | 90 | 6.4 | 38 | 4 | 19.05 | 0.36 | 0.19 | 0.16 |
| 1 1/4 | 32 | 42 | 79 | 100 | 6.4 | 38 | 4 | 19.05 | 0.43 | 0.25 | 0.17 |
| 1 1/2 | 40 | 48 | 92 | 115 | 6.4 | 38 | 4 | 22.225 | 0.58 | 0.34 | 0.24 |
| 2 | 50 | 61 | 108 | 125 | 9.7 | 51 | 5 | 19.05 | 1.19 | 0.71 | 0.48 |
| 2 1/2 | 65 | 73 | 127 | 150 | 9.7 | 51 | 5 | 22.225 | 1.64 | 0.98 | 0.65 |
| 3 | 80 | 89 | 146 | 170 | 9.7 | 64 | 5 | 22.225 | 2.11 | 1.29 | 0.81 |
| 3 1/2 | 90 | 102 | 162 | 185 | 12.7 | 64 | 7 | 22.225 | 3.35 | 2.09 | 1.26 |
| 4 | 100 | 114 | 178 | 200 | 12.7 | 64 | 7 | 22.225 | 4.01 | 2.52 | 1.49 |
| 5 | 130 | 141 | 213 | 235 | 15.7 | 76 | 8 | 22.225 | 6.98 | 4.47 | 2.51 |
| 6 | 150 | 168 | 248 | 270 | 15.7 | 76 | 8 | 22.225 | 9.34 | 6.06 | 3.28 |
| 8 | 200 | 219 | 305 | 330 | 22.4 | 76 | 17 | 25.4 | 19.42 | 13.08 | 6.33 |
| 10 | 250 | 273 | 359 | 385 | 25.4 | 102 | 20 | 28.575 | 29.22 | 20.55 | 8.66 |
| 12 | 300 | 324 | 419 | 450 | 28.4 | 102 | 22 | 31.75 | 43.9 | 31.31 | 12.58 |
| 14 | 350 | 356 | 483 | 515 | 31.8 | 108 | 24 | 31.75 | 67.86 | 46.58 | 21.27 |
| 16 | 400 | 406 | 536 | 570 | 38.1 | 108 | 29 | 34.925 | 98.04 | 68.74 | 29.3 |
| 18 | 450 | 457 | 594 | 630 | 41.1 | 114 | 31 | 34.925 | 128.23 | 91.06 | 37.16 |
| 20 | 500 | 508 | 651 | 685 | 44.5 | 121 | 34 | 34.925 | 164.75 | 118.43 | 46.31 |
| 24 | 600 | 610 | 772 | 810 | 50.8 | 140 | 39 | 41.275 | 261.55 | 190.13 | 71.42 |
| Pipe Size | 150 # | 300 # | 600 # | 900 # | 1500 # | 2500 # | ||||||||||||
| WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
| 1/2″ | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | SEE 1500 # WEIGHTS | 5 | 4 | 4 | 7 | 7 | 7 | ||
| 3/4″ | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | SEE 1500 # WEIGHTS | 6 | 5 | 6 | 8 | 8 | 8 | ||
| 1″ | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | SEE 1500 # WEIGHTS | 9 | 8 | 8 | 12 | 11 | 11 | ||
| 1 1/2″ | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | SEE 1500 # WEIGHTS | 13 | 12 | 13 | 25 | 22 | 23 | ||
| 2″ | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | SEE 1500 # WEIGHTS | 25 | 25 | 25 | 42 | 37 | 39 | ||
| 2 1/2″ | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | SEE 1500 # WEIGHTS | 36 | 36 | 35 | 52 | 55 | 56 | ||
| 3″ | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
| 4″ | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
| 5″ | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
| 6″ | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
| 8″ | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
| 10″ | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
| 12″ | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
| 14″ | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
| 16″ | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
| 18″ | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
| 20″ | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
| 22″ | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| 24″ | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
Yes, we offer custom sizes for Spades and Ring Spacers Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
