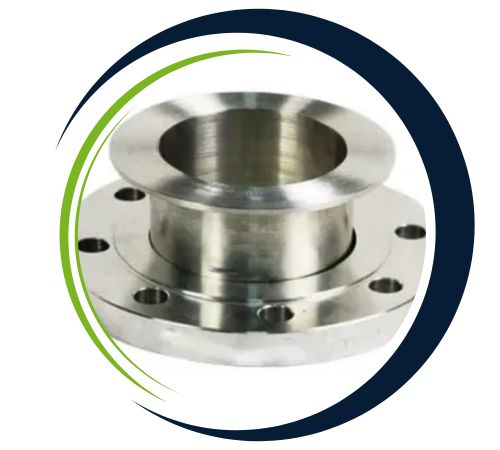

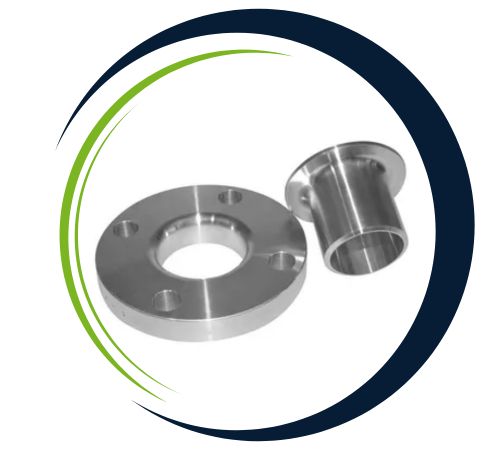

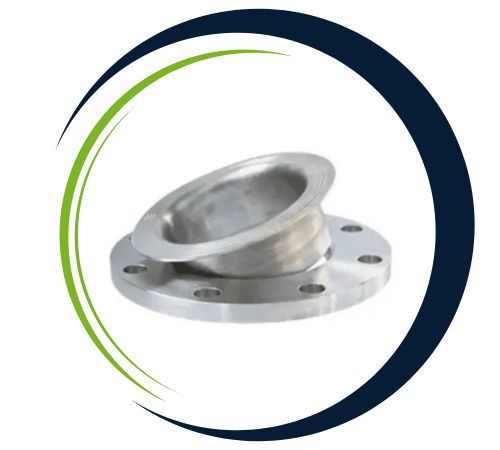

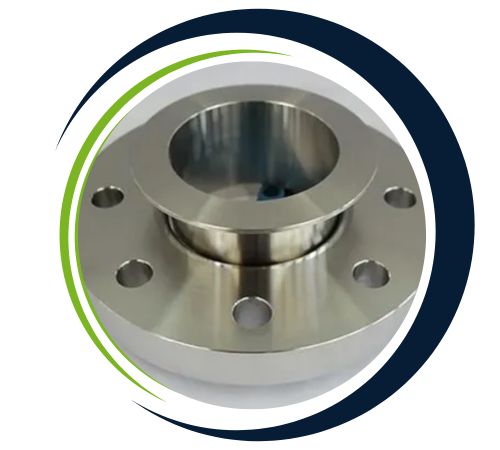

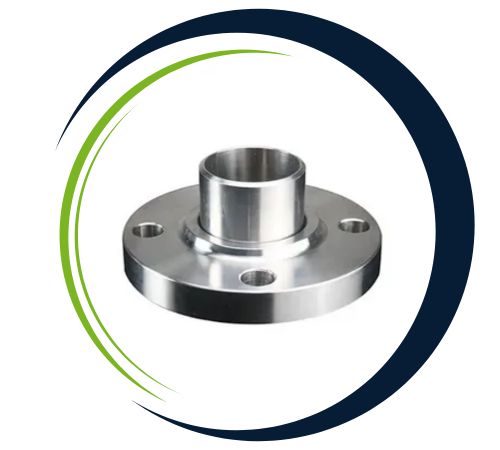

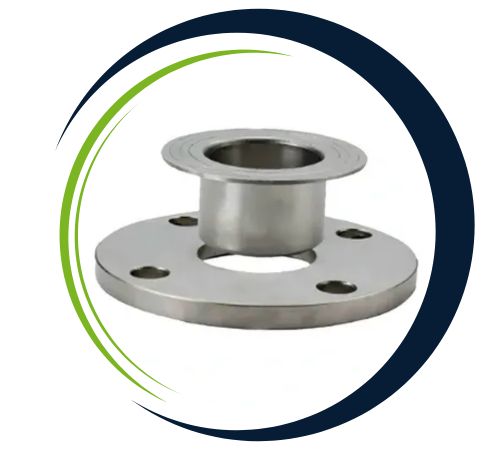

Brian Fasteners produces Titanium Lap-Joint Flanges, combining a loose titanium stub-end with a lap-joint backing flange for economical piping assemblies. Constructed from Grade 2 or Grade 5 titanium and meeting ASTM/ASME specifications, these flanges provide ease of alignment and reusability. Machined and traceable, suitable for applications requiring frequent disassembly or inspection. Brian Fasteners ships these flanges with rapid delivery and metallurgical certification, suitable to chemical plants, pharmaceutical lines, and offshore systems requiring corrosion-resistant, service-friendly connections.
Titanium lap-joint flanges are made from Grade 2 or Grade 5 titanium alloys having tensile strengths of 345 MPa and 860 MPa respectively. The two alloys also have corrosion resistance to seawater, acids, and oxidizing environments, with maintaining mechanical strength down to −250 °C. Stub-end/stainless steel backing construction provides leverage while still providing sealing performance.
| Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | ||||||||||
| 1/2 | 15 | 90 | 30 | 16 | 22.9 | 60.3 | 11.2 | 3 | 4 | 1/2 | 50 | 55 | 5/8 | M14 | 0.8 |
| 3/4 | 20 | 100 | 38 | 16 | 28.2 | 69.9 | 12.7 | 3 | 4 | 1/2 | 50 | 65 | 5/8 | M14 | 0.9 |
| 1 | 25 | 110 | 49 | 17 | 34.9 | 79.4 | 14.3 | 3 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 0.9 |
| 1 1/4 | 32 | 115 | 59 | 21 | 43.7 | 88.9 | 15.9 | 5 | 4 | 1/2 | 55 | 70 | 5/8 | M14 | 1.4 |
| 1 1/2 | 40 | 125 | 65 | 22 | 50 | 98.4 | 17.5 | 6 | 4 | 1/2 | 65 | 70 | 5/8 | M14 | 1.4 |
| 2 | 50 | 150 | 78 | 25 | 62.5 | 120.7 | 19.1 | 8 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 2.3 |
| 2 1/2 | 65 | 180 | 90 | 29 | 75.4 | 139.7 | 22.3 | 8 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
| 3 | 80 | 190 | 108 | 30 | 91.4 | 152.4 | 23.9 | 10 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.7 |
| 3 1/2 | 90 | 215 | 122 | 32 | 104.1 | 177.8 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5 |
| 4 | 100 | 230 | 135 | 33 | 116.8 | 190.5 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5.9 |
| 5 | 125 | 255 | 164 | 36 | 144.4 | 215.9 | 23.9 | 11 | 8 | 3/4 | 85 | 95 | 7/8 | M20 | 6.8 |
| 6 | 150 | 280 | 192 | 40 | 171.4 | 241.3 | 25.4 | 13 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 8.6 |
| 8 | 200 | 345 | 246 | 44 | 222.2 | 298.5 | 28.6 | 13 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 13.7 |
| 10 | 250 | 405 | 305 | 49 | 277.4 | 362 | 30.2 | 13 | 12 | 7/8 | 100 | 115 | 1 | M24 | 19.5 |
| 12 | 300 | 485 | 365 | 56 | 328.2 | 431.8 | 31.8 | 13 | 12 | 7/8 | 100 | 120 | 1 | M24 | 29 |
| 14 | 350 | 535 | 400 | 79 | 360.2 | 476.3 | 35 | 13 | 12 | 1 | 115 | 135 | 1 1/8 | M27 | 41 |
| 16 | 400 | 595 | 457 | 87 | 411.2 | 539.8 | 36.6 | 13 | 16 | 1 | 115 | 135 | 1 1/8 | M27 | 54 |
| 18 | 450 | 635 | 505 | 97 | 462.3 | 577.9 | 39.7 | 13 | 16 | 1 1/8 | 125 | 145 | 1 1/4 | M30 | 59 |
| 20 | 500 | 700 | 559 | 103 | 514.4 | 635 | 42.9 | 13 | 20 | 1 1/8 | 140 | 160 | 1 1/4 | M30 | 75 |
| 24 | 600 | 815 | 663 | 111 | 616 | 749.3 | 47.9 | 13 | 20 | 1 1/4 | 150 | 170 | 1 3/8 |
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Titanium Lap Joint Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Lap-joint flanges are appropriate for piping systems where frequent cleaning or maintenance is necessary, including pharmaceutical processing, food-grade manufacturing, and offshore water injection lines. Brian Fasteners provides them for use in scenarios where bolting of the flange can be reused, and where titanium contact prevents deaeration and corrosion. These flanges allow reliable sealing coupled with economical maintenance cycles in sanitary and corrosive environments.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Lap Joint Flange to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
