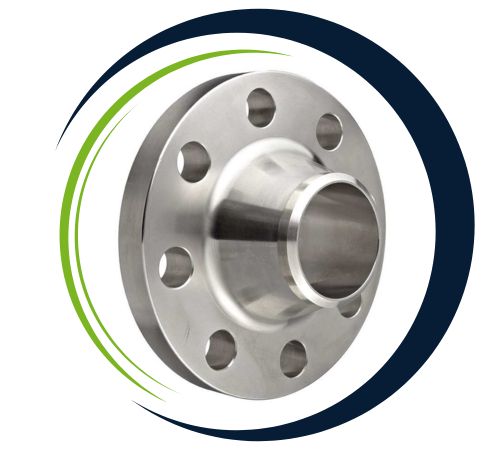

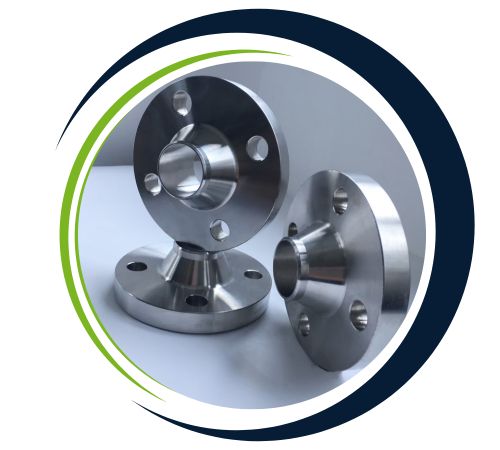

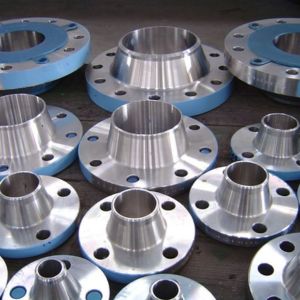

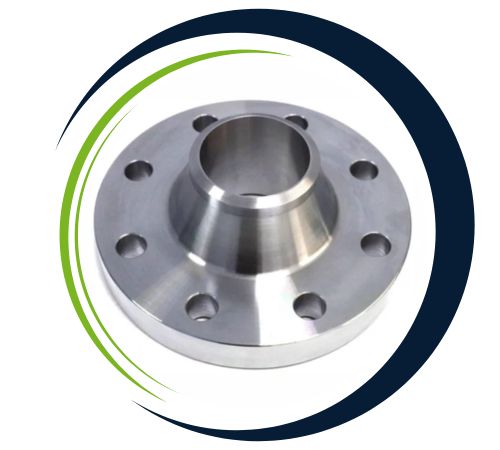

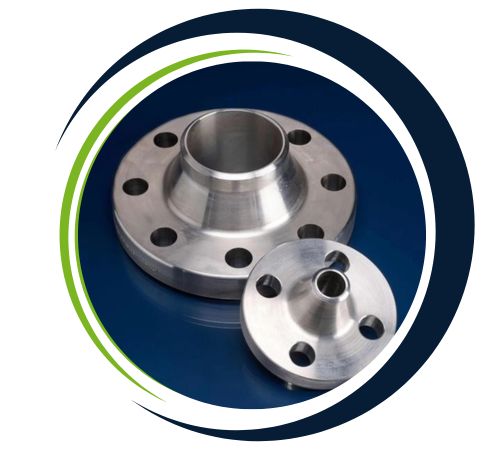

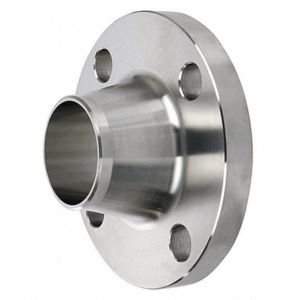

Brian Fasteners manufactures Titanium Weld-Neck Flanges precision-machined from Grade 2 or Grade 5 titanium to ANSI/ASME specifications. A long tapered hub and full penetration weld potential define these flanges, which offer stress distribution and mechanical strength in high-pressure applications. With traceable certified material and close machining tolerances, Brian Fasteners supplies flanges for critical piping and structural use. Perfect for aerospace, chemical process, and offshore equipment, titanium weld-neck flanges provide corrosion resistance and strength for rigorous connection conditions.
They consist of CP Grade 2 or Ti‑6Al‑4V Grade 5. Grade 2 provides tensile strength ~345 MPa; Grade 5 ~860 MPa. Both retain strength from –250 to +400 °C and are resistant to chemical and marine corrosion. Weld-neck design provides strong, fatigue-resistant connections. Material has good toughness and weldability, accommodating high-pressure piping applications.
| Trade name | Titanium Weld Neck Flange |
| Titanium Weld Neck Flanges Standard | ASTM B381 / ASME SB381 ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Titanium Weld Neck Flange Dimensions | B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Titanium Welding Neck Flanges Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000) |
| Titanium Weld Neck Flanges Class/Pressure |
|

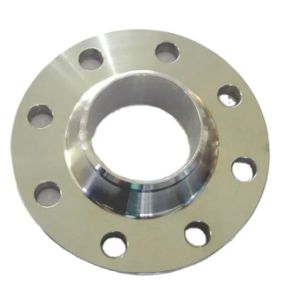

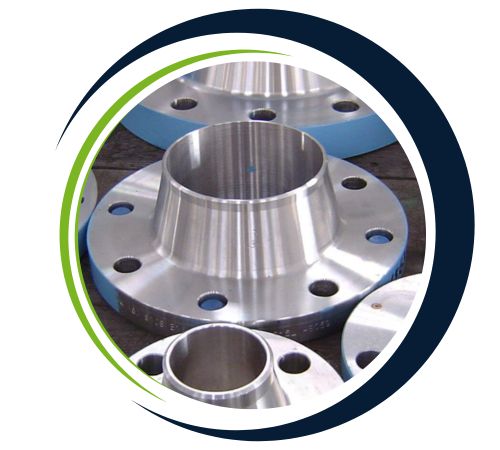

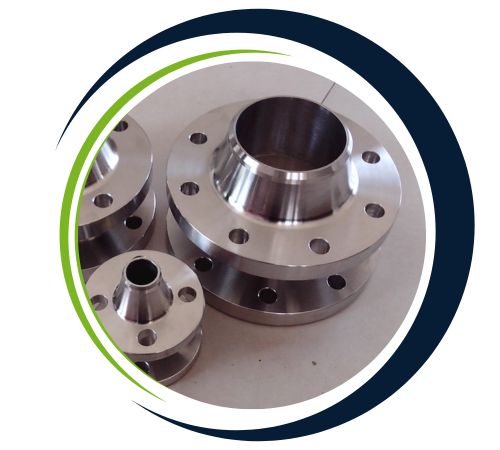

| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| SB 381 Grade 2 Titanium Weld Neck Flanges Marking | All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.) |
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Titanium Weldneck Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium weld-neck flanges find application in high-pressure chemical pipes, cryogenic systems, hydraulic transmission, and marine shipbuilding. They are well-suited for boiler connections, aerospace fuel lines, and deep-sea pipelines. Brian Fasteners provides flanges where structural integrity and corrosion protection are of critical importance. Their product ensures long-term leak-proof performance and safety in critical fluid systems.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Weldneck Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
