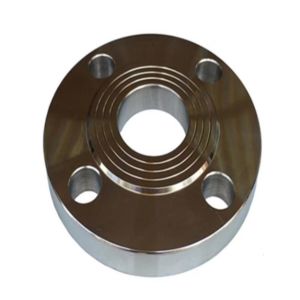

Brian Fasteners produces Titanium Slip-On Flanges in Houston, USA. Flanges are provided for easy installation; they slip onto the pipe and are welded with a fillet. Made of Grade 2 or Grade 5 titanium, they are provided to ASTM/ASME/ANSI standards with accurate machining and traceability. Suitable for low-pressure systems, Titanium slip-on flanges provide weight savings and corrosion resistance, and can be made to custom sizes with quick delivery from the in-house facilities of Brian Fasteners.
Slip-on flanges are constructed of CP Grade 2 or Ti-6Al-4V Grade 5 titanium. Grade 2 provides tensile strength ~345 MPa and elongation ~24%; Grade 5 offers ~860 MPa and ~10% elongation. Both alloys retain their strength between −250 and +400 °C and are resistant to marine and chemical corrosion. These flanges have good weldability and resistance to fatigue under cyclic loading.
| Trade name | Titanium Slip On |
| Titanium Slip On Flanges Standard | ASTM B381 / ASME SB381 ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Titanium Slip On Dimensions | B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Titanium Slip On Flanges Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000) |
| Titanium Slip On Flanges Class/Pressure |
|
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Titanium Slip On Flanges Marking | All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.) |
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Titanium Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium slip-on flanges are applied in process piping, hydraulic systems, desalination plants, and chemical plants. They are easy to install, making them a good choice for retrofit and maintenance purposes. Brian Fasteners provides flanges mainly for marine piping, potable water systems, cooling lines, and HVAC duct connections. The corrosion and lightweight advantages are suited for repetitive assembly and fluid integrity demands.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Slip On Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
