Shawn Flanges, Houston, USA, is a reliable producer and supplier of Titanium Flat Flanges, providing high-quality flange solutions for industries demanding exceptional corrosion resistance and durability. Our Titanium Flat Flanges are designed with precision for a low-pressure application and low-pressure systems where welding will be needed. Our products are made to meet ASTM and ASME standards and assure a safe and sound performance under demanding conditions. At Shawn Flanges, we pair our cutting-edge manufacturing process with rigorous quality control to provide customers worldwide with high-performance flanges for industrial and commercial use.
Our Titanium Flat Flanges are manufactured from premier-grade titanium alloys like Grade 2 (commercially pure) and Grade 5 (Ti-6Al-4V) that feature superior corrosion resistance, low weight, and mechanical strength. They provide tensile strength between 345 and 895 MPa, yield strength between 275 and 828 MPa, and elongation of up to 20%, based on the alloy. The flanges are produced to meet ASTM B381 and ASME B16.5 specifications, which provide high precision, superb surface finish, and accuracy of dimensions. Titanium Flat Flanges are suitable for use in situations where chemical, marine, or high-purity environment resistance is most important.
| Product Name | Titanium Flat Flanges |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standards / Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |
| Titanium Flat Face Flanges / Connection Type | Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G) |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Custom Design | As per your drawing | AS, BS, ANSI, DIN, JIS | Equal and Reducing Configurations |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
| Test Certificates | 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc |
| Tests | Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment / Machines | Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc. |
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Titanium Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| STANDARD | UNS | WERKSTOFF NR. |

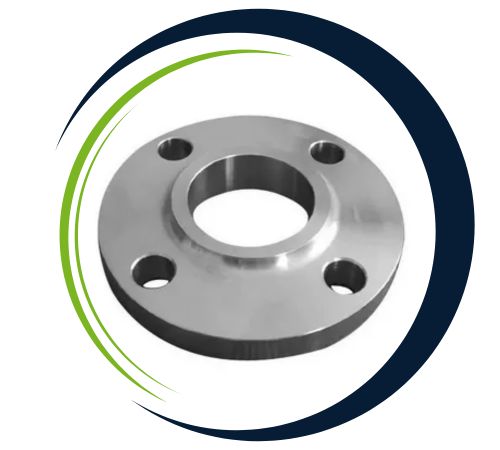

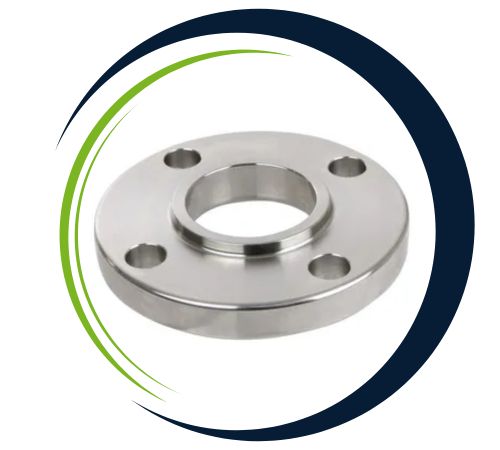

| Titanium Gr 2 | R50400 | 3.7035 |

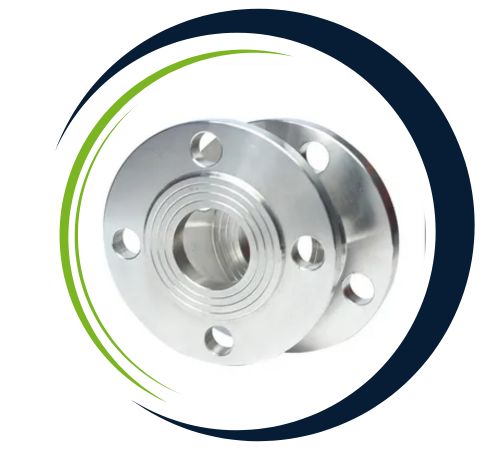

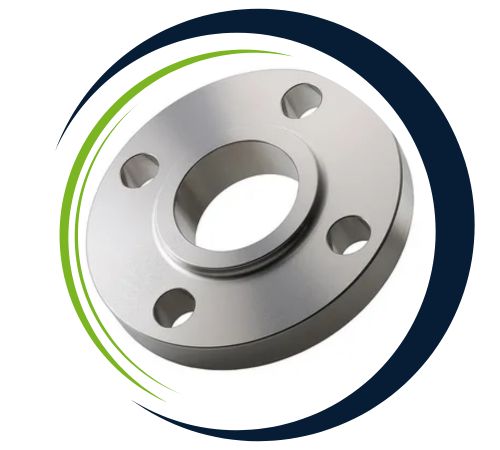

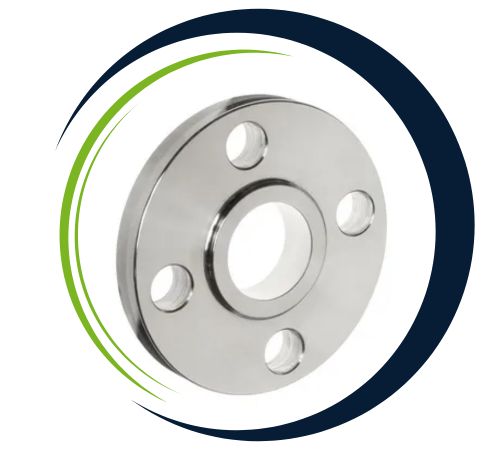

| Titanium Gr 5 | R56400 | 3.7165 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | .08 Max | .03 Max | .18 Max | .015 Max | Bal | .20 Max |
| Titanium Grade 4 | .08 Max | .05 Max | .40 Max | .015 Max | Bal | .50 Max |
| Titanium Grade 7 | .08 Max | .03 Max | .25 Max | .015 Max | Bal | .30 Max |
| Titanium Grade 9 | .08 Max | .03 Max | .15 Max | .015 Max | – | .25 Max |
| Titanium Grade 12 | .08 Max | .03 Max | .25 Max | 0.15 Max | – | .30 Max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Yes, we offer custom sizes for Titanium Flat Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
