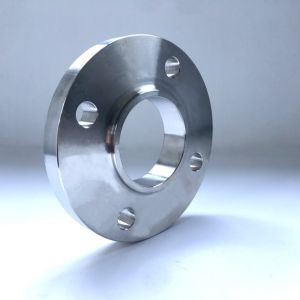

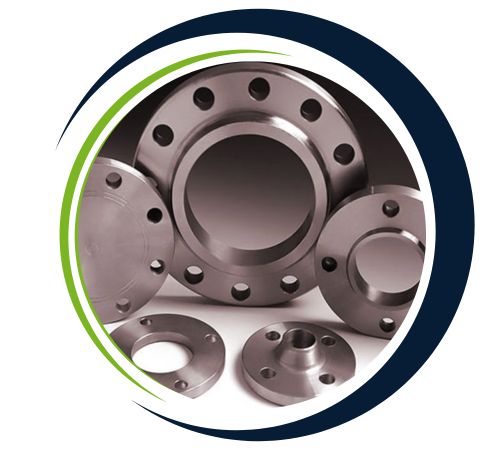

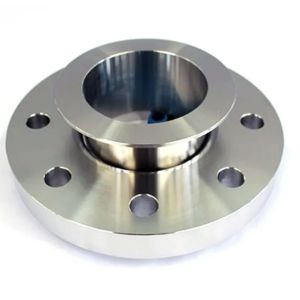

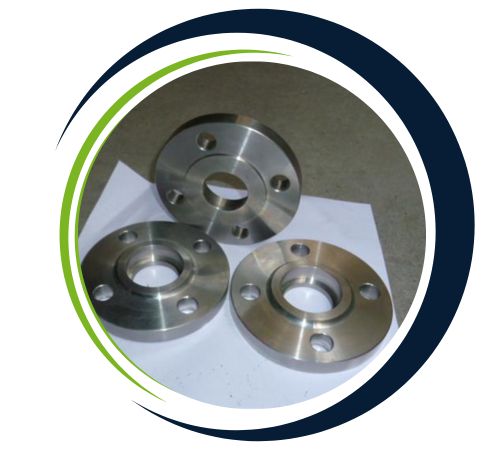

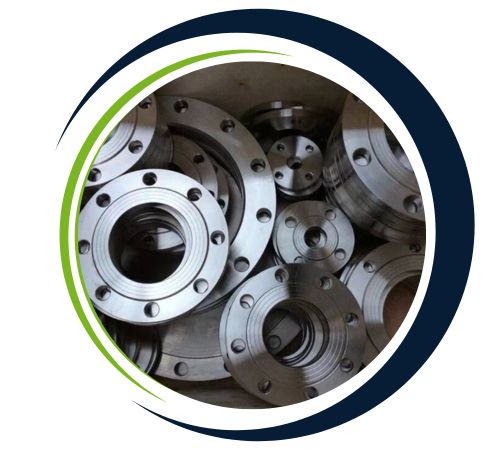

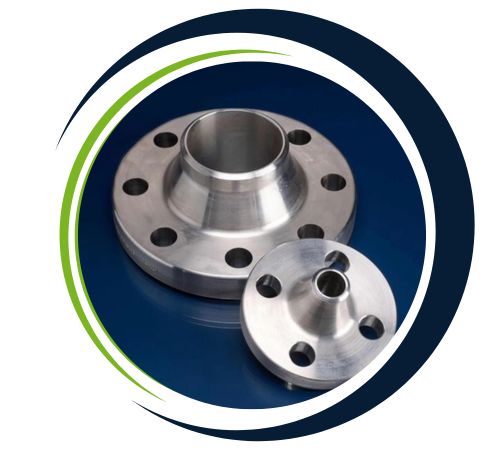

Houston, USA-based Brian Fasteners is a leading manufacturer and supplier of Titanium Flanges. Manufactured from high-performance titanium alloys, the flanges possess excellent corrosion resistance, lightweight strength, and biocompatibility. Slip-on, weld-neck, socket-weld, lap-joint, RTJ, and forged flanges are manufactured by Brian Fasteners to ASTM, ASME, and ANSI standards. With tight tolerances, rapid delivery, and complete material traceability, their titanium flanges are perfect for aerospace, chemical, marine, and medical applications where weight savings and corrosion resistance are essential.
Titanium flanges are mostly fabricated from commercially pure titanium (CP Grade 2) or Grade 5 (Ti-6Al-4V), with ~90% Ti with Al and V in Grade 5. They have tensile strength 345–895 MPa, yield strength 275–830 MPa, and elongation of 10–25%, varying with alloy and temper. Titanium flanges are light weight (~56% of steel), corrosion resistant in seawater and chloride, and retain strength over a broad temperature range (−250 to +400 °C). They also exhibit very good fatigue and biocompatibility properties.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|
| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |

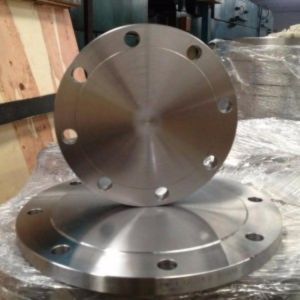

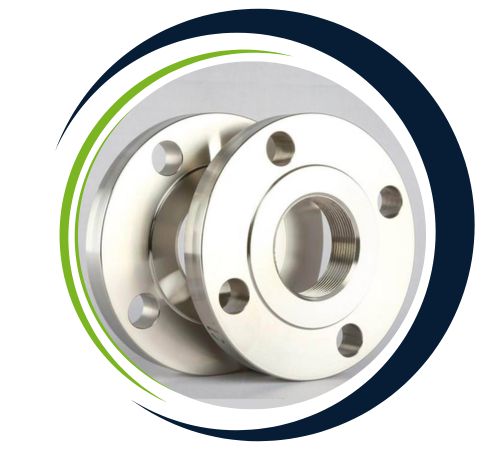

Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Titanium Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium flanges are applied in aerospace hydraulic systems, spacecraft propulsion, chemical piping, offshore platforms, desalination plants, and medical devices. They are best suited for marine heat exchangers, cryogenic equipment, and biotech facilities with their light weight, non-magnetic, and corrosion-resistant features. Brian Fasteners provides titanium flanges that are appropriate for joining pipes, valves, and pressure vessels in harsh and corrosive surroundings—industries requiring strength, safety, and accuracy.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
