Based in Houston, Texas, Shawn Flanges is a top producer and supplier of high-end stainless steel screwed flanges. Our screwed flanges, which are renowned for their accuracy and robustness, are designed to satisfy the various requirements of sectors where threaded connections are favoured over welding. These flanges are perfect for small piping systems because they are simple to install and maintain and are made for low-pressure, non-cyclic applications. Shawn Flanges produces goods that go above and beyond industry standards with a dedication to quality, compliance, and client satisfaction. We are a trusted partner for customers both domestically and internationally thanks to our extensive inventory and dependable supply chain.

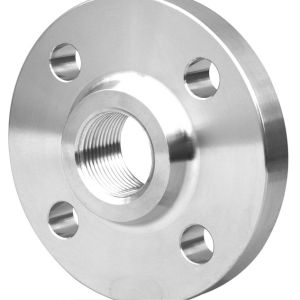

Iron makes up the majority of stainless steel screwed flanges, but alloying elements like chromium (17–20%), nickel (8–12%), and molybdenum (2–3%) are added to improve strength and resistance to corrosion. Formability and weldability are influenced by trace elements such as silicon, carbon, and manganese. With a tensile strength of 485–620 MPa and a yield strength of roughly 170–310 MPa, these flanges provide exceptional mechanical performance. They guarantee resilience under moderate pressures and temperatures thanks to elongation values between 30 and 50%. They are appropriate for general industrial use due to their structural integrity, toughness, and resistance to corrosion.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

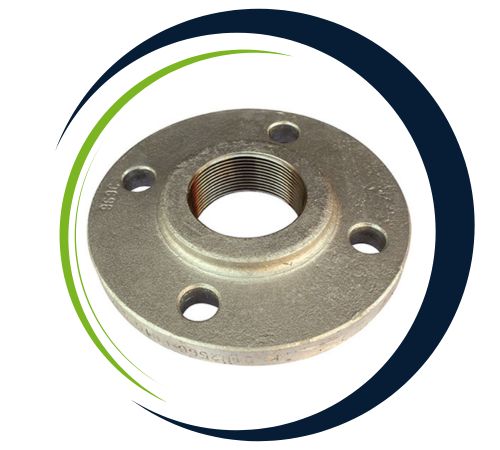

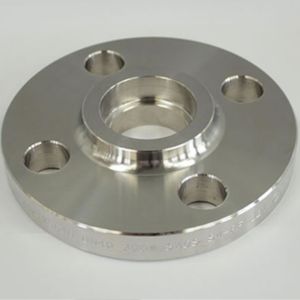

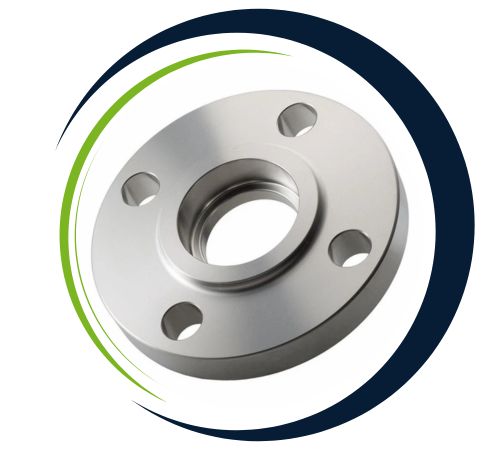

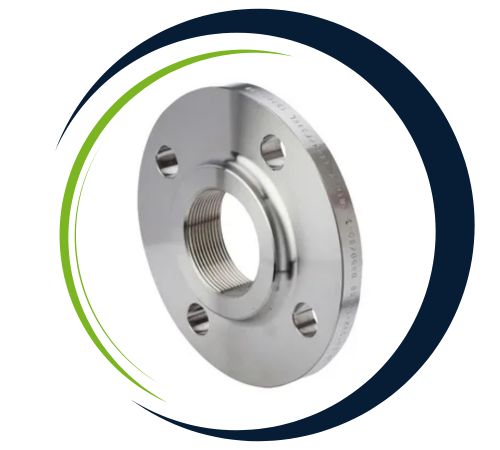

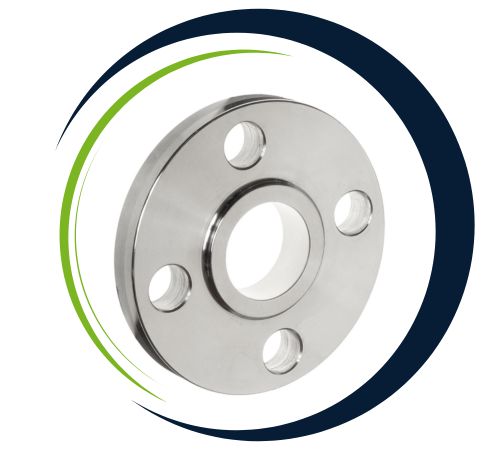

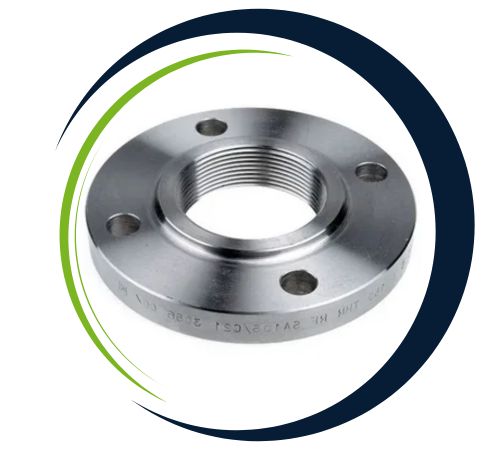

| Material | Brass Screwed Flange, Titanium Screwed Flange, Incoloy Screwed Flange, Nickel Alloy Screwed Flange, Super Duplex Screwed Flange, Monel Screwed Flange, Duplex Steel Screwed Flange, Copper Nickel Screwed Flange, Inconel Screwed Flange, Stainless Steel Screwed Flange, SMO 254 Screwed Flange, Hastelloy Screwed Flange, AISI 4130 Screwed Flange, Alloy 20 Screwed Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Screwed Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
In pipe systems where welding is neither desirable nor practical, stainless steel screwed flanges are frequently utilised. They are frequently used in small-diameter, low-pressure piping and are perfect for applications like fire safety systems, water treatment, chemical processing, and oil and gas distribution. Installation is quick and economical thanks to their threaded connection, particularly for maintenance and repair tasks. When fitted correctly, these flanges offer a leak-proof seal and are appropriate for non-cyclic applications involving fluids or gases. Screwed flanges are especially useful in temporary piping configurations or in dangerous settings where welding could be dangerous.
| FLANGE NPS | Inside Diameter | Outside Diameter | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | H | Raised Face Thickness (T) | T1 | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 0.93″ | 3.75″ | 2.62″ | 1.38″ | .063″ | 1.50″ | 0.88″ | 0.50″ | 0.82″ | 0.62″ | 4 |
| 3/4″ | 1.14″ | 4.62″ | 3.25″ | 1.69″ | .063″ | 1.88″ | 1.00″ | .056″ | 0.94″ | 0.75″ | 4 |
| 1″ | 1.41″ | 4.88″ | 3.50″ | 2.00″ | .063″ | 2.12″ | 1.06″ | 0.63″ | 1.00″ | 0.75″ | 4 |
| 1-1/4″ | 1.75″ | 5.25″ | 3.88″ | 2.50″ | .063″ | 2.50″ | 1.06″ | 0.69″ | 1.00″ | 0.75″ | 4 |
| 1-1/2″ | 1.99″ | 6.12″ | 4.50″ | 2.88″ | .063″ | 2.75″ | 1.19″ | 0.75″ | 1.13″ | 0.88″ | 4 |
| 2″ | 2.50″ | 6.50″ | 5.00″ | 3.62″ | .063″ | 3.31″ | 1.31″ | 0.82″ | 1.25″ | 0.75″ | 8 |
| 2-1/2″ | 3.00″ | 7.50″ | 5.88″ | 4.12″ | .063″ | 3.94″ | 1.50″ | 0.94″ | 1.44″ | 0.88″ | 8 |
| 3″ | 3.63″ | 8.25″ | 6.62″ | 5.00″ | .063″ | 4.62″ | 1.69″ | 1.06″ | 1.63″ | 0.88″ | 8 |
| 3-1/2″ | 4.13″ | 9.00″ | 7.25″ | 5.50″ | .063″ | 5.25″ | 1.75″ | 1.13″ | 1.69″ | 0.88″ | 8 |
| 4″ | 4.63″ | 10.00″ | 7.88″ | 6.19″ | .063″ | 5.75″ | 1.88″ | 1.19″ | 1.82″ | 0.88″ | 8 |
| 5″ | 5.69″ | 11.00″ | 9.25″ | 7.31″ | .063″ | 7.00″ | 2.00″ | 1.32″ | 1.94″ | 0.88″ | 8 |
| 6″ | 6.75″ | 12.50″ | 10.62″ | 8.50″ | .063″ | 8.12″ | 2.06″ | 1.38″ | 2.00″ | 0.88″ | 12 |
| 8″ | 8.75″ | 15.00″ | 13.00″ | 10.62″ | .063″ | 10.25″ | 2.44″ | 1.56″ | 2.38″ | 1.00″ | 12 |
| 10″ | 10.88″ | 17.50″ | 15.25″ | 12.75″ | .063″ | 12.62″ | 2.62″ | 1.82″ | 2.56″ | 1.12″ | 16 |
| 12″ | 12.94″ | 20.50″ | 17.75″ | 15.00″ | .063″ | 14.75″ | 2.88″ | 1.94″ | 2.82″ | 1.25″ | 16 |
| 14″ | 14.19″ | 23.00″ | 20.25″ | 16.25″ | .063″ | 16.75″ | 3.00″ | 2.06″ | 2.94″ | 1.25″ | 20 |
| 16″ | 16.19″ | 25.50″ | 22.50″ | 18.50″ | .063″ | 19.00″ | 3.25″ | 2.19″ | 3.19″ | 1.38″ | 20 |
| 18″ | 18.19″ | 28.00″ | 24.75″ | 21.00″ | .063″ | 21.00″ | 3.50″ | 2.32″ | 3.44″ | 1.38″ | 24 |
| 20″ | 20.19″ | 30.50″ | 27.00″ | 23.00″ | .063″ | 23.12″ | 3.75″ | 2.44″ | 3.69″ | 1.38″ | 24 |
| 22″ | 22.19″ | 33.00″ | 29.25″ | 25.25″ | .063″ | 25.25″ | 4.00″ | 2.57″ | 3.94″ | 1.63″ | 24 |
| 24″ | 24.19″ | 36.00″ | 32.00″ | 27.25″ | .063″ | 27.62″ | 4.19″ | 2.69″ | 4.13″ | 1.62″ | 24 |
| Pipe Size | 150 # | 300 # | 600 # | 900 # | 1500 # | 2500 # | ||||||||||||
| WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
| 1/2″ | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | SEE 1500 # WEIGHTS | 5 | 4 | 4 | 7 | 7 | 7 | ||
| 3/4″ | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | SEE 1500 # WEIGHTS | 6 | 5 | 6 | 8 | 8 | 8 | ||
| 1″ | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | SEE 1500 # WEIGHTS | 9 | 8 | 8 | 12 | 11 | 11 | ||
| 1 1/2″ | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | SEE 1500 # WEIGHTS | 13 | 12 | 13 | 25 | 22 | 23 | ||
| 2″ | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | SEE 1500 # WEIGHTS | 25 | 25 | 25 | 42 | 37 | 39 | ||
| 2 1/2″ | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | SEE 1500 # WEIGHTS | 36 | 36 | 35 | 52 | 55 | 56 | ||
| 3″ | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
| 4″ | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
| 5″ | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
| 6″ | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
| 8″ | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
| 10″ | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
| 12″ | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
| 14″ | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
| 16″ | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
| 18″ | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
| 20″ | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
| 22″ | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| 24″ | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
Yes, we offer custom sizes for Screwed Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
