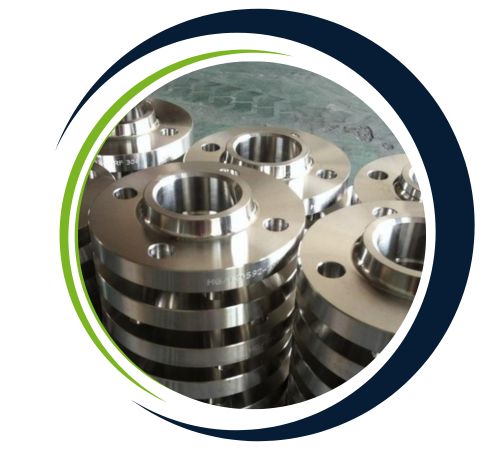

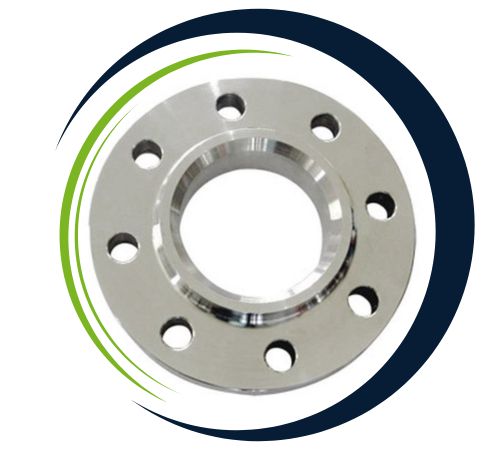

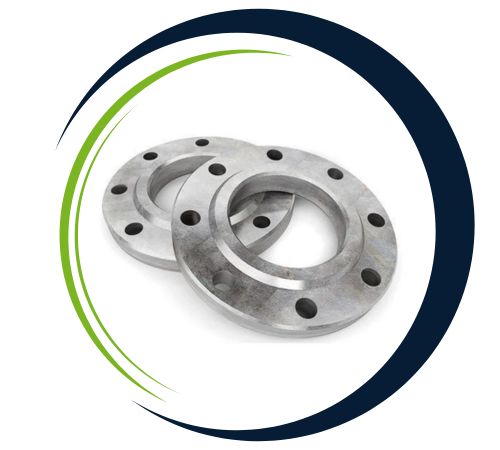

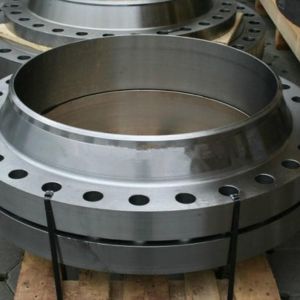

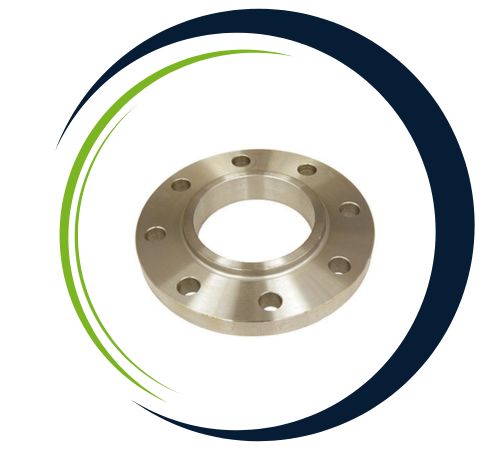

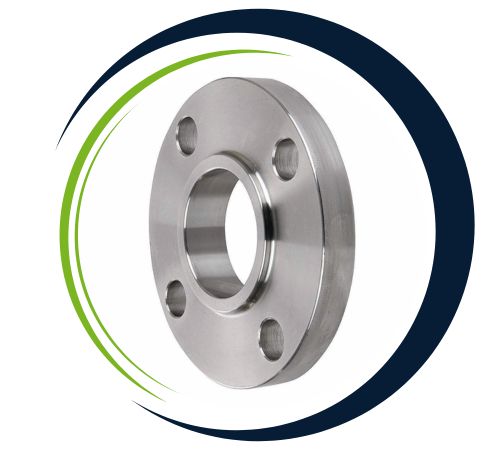

Brian Fasteners, one of the prime Houston-based suppliers, produces Titanium Forged Flanges in Grade 2 and Grade 5 titanium. Precision controlled forging shapes these flanges, which are endowed with improved grain structure and enhanced mechanical performance. Compliant with ASTM/ASME/ANSI standards, every forged flange is delivered with complete traceability and quality certification. Suitable for structural and high-pressure applications in aerospace, nuclear, oil & gas, and chemical processes, these durable flanges provide dependability and durability. Brian Fasteners provides bespoke forging sizes with quick turnaround to accommodate technical and safety-critical specifications.
Titanium forged flanges are made from Grade 2 (345 MPa tensile) or Grade 5 (860 MPa tensile) alloys, with high strength and corrosion resistance maintained. Fatigue life, toughness, and weldability are improved by forging. The flanges operate between −250 to +400 °C, withstanding hostile chemicals and seawater. Isotropic mechanical properties and better structural reliability are guaranteed by the forging process compared to cast options.
| Size Chart | 1/2″ to 48″ (15 NB) to (1200NB) |
|---|---|
| Manufacturer of | ANSI DIN, GOST, UNI, BS, AS2129, JIS, NFE, AWWA, SABS, EN etc. |
| Coating | Zinc Plated, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized |
| Common Type | Forged Flange |
| Pressure Rating Chart ANSI | 300 LBS, 600 LBS, 150 LBS, 2500 LBS, 900 LBS, 1500 LBS |
| Connect Types/ Flange Face Types Manufacturer | RTJ, FF, RF, Small Tongue, LJF, Large Tongue & Groove |
| DIN / JIS / UNI / EN | 16Bar, 6Bar, 25Bar, 40Bar, 10Bar / PN10, PN25, PN64, PN16, PN6, PN40 |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
| Test | Magnetic particle detector, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, ydrostatic testing machine |
| Standards | API7S-43, API605, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, API7S-15, BS4504, MSS S44, ISO70051, BS 10, EN-1092, JISB2220, DIN, ASME/ANSI B16.5/16.36/16.47A/16.47B, BS1560-3.1, EN1092 |

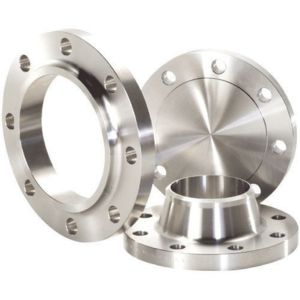

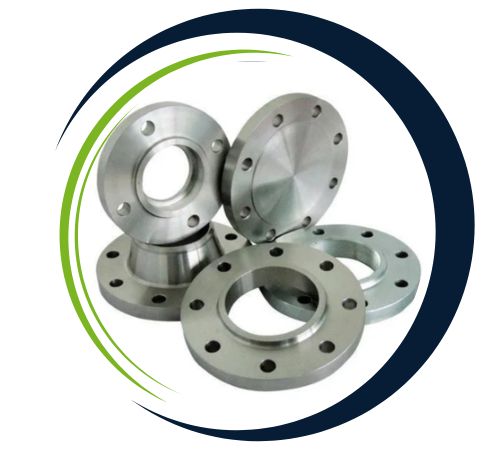

Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Titanium Forged Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Forged Flanges find application in safety-critical systems such as nuclear reactor piping, fuel lines for aircraft, high-pressure chemical reactors, and subsea manifolds. Their strength and high-temperature corrosion resistance qualify them for safety-critical applications. Brian Fasteners provides these forged flanges for conditions demanding extraordinary strength, fatigue resistance, and long-term performance—guaranteeing system integrity in the most severe industrial applications.
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 ℃ (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 ℃ (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
Yes, we offer custom sizes for Titanium Forged Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
