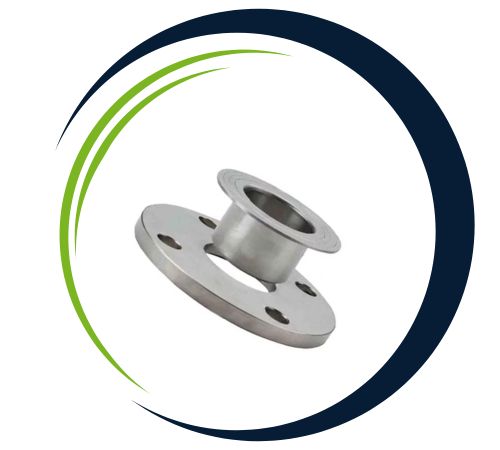

Shawn Flanges, based in Houston, USA, stands out as a top-notch manufacturer and supplier of PN6-PN40 DIN Flanges. These flanges are crafted to handle a variety of pressure ratings, specifically from PN6 to PN40, all while adhering to the DIN standard. With a focus on precision, they ensure dependable performance in both European and international piping systems. Shawn Flanges provides an array of options, including weld neck, slip-on, blind, threaded, socket weld, and lap joint flanges, all compliant with DIN specifications. Our PN6-PN40 DIN flanges are perfect for applications that demand consistent quality, durability, and compatibility with DIN pipeline components across various industrial sectors.

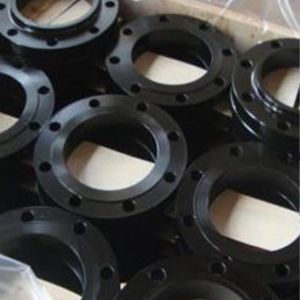

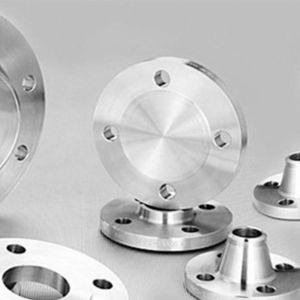

PN6-PN40 DIN Flanges from Shawn Flanges are constructed from carbon steel, stainless steel, and alloy steel grades, tailored to meet specific application needs while following DIN standards like DIN EN 1092-1. Their chemical makeup typically strikes a balance between carbon, manganese, and other alloying elements, resulting in tensile strengths that range from 300 to 700 MPa and yield strengths between 200 and 450 MPa. These flanges are known for their impressive toughness, weldability, and resistance to corrosion, making them well-suited for managing pressures from 6 to 40 bar in a variety of environments.
| Specifications | PN6-PN40 DIN Flanges |
|---|---|
| PN6-PN40 DIN Flange size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Production technique | Forged, Heat treated and machined |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations JIS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |

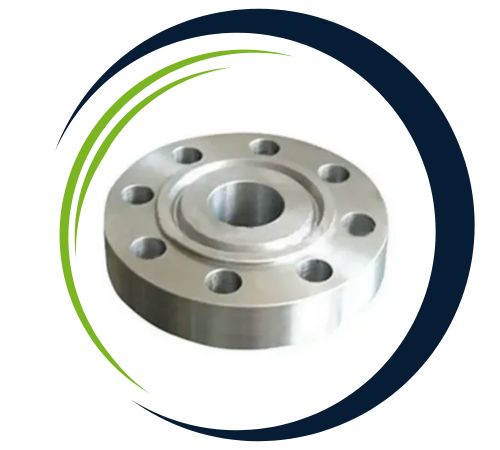

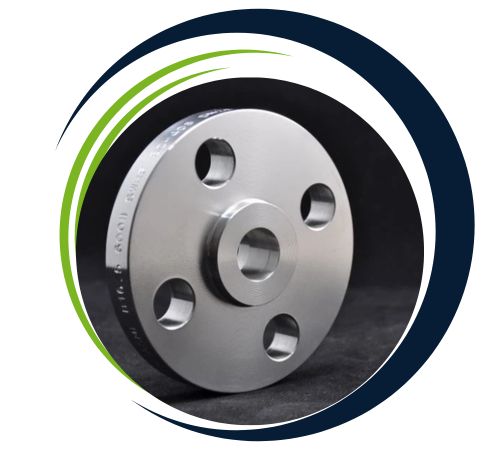

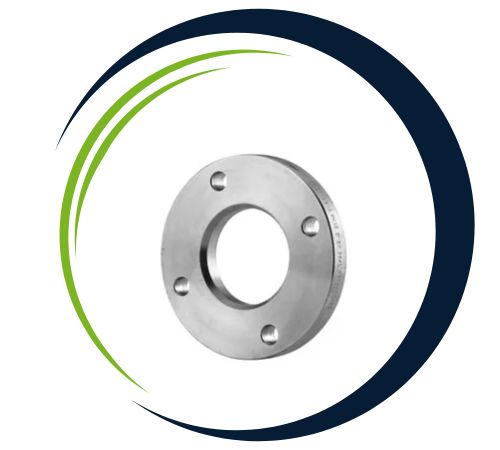

| Specialized manufacturer of | DIN 2566 en 1092 1 Pn16 Flange DIN 2566 pn16 Rtj Flange PN6-PN40 DIN Sorf Flange PN6-PN40 DIN Table Flanges DIN 2566 pn10 PN6-PN40 DIN Large Diameter Flange PN6-PN40 DIN Threaded Flanges PN6-PN40 DIN Blind Flanges PN6-PN40 DIN Plate Flanges PN6-PN40 DIN Weld Neck Flanges PN6-PN40 DIN Loose Flanges PN6-PN40 DIN Orifice Flanges PN6-PN40 DIN Slip-On Flanges PN6-PN40 DIN Lap Joint Flanges PN6-PN40 DIN Socketweld Flanges PN6-PN40 DIN AS 4087 Water Flanges |
| Test | Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | West Europe /Indian / USA / Japan / Korean |
| Key markets and industries for PN6-PN40 DIN Flange | Nuclear power (mostly seamless). Heavy oil refineries. Bitumen upgraders. Petrochemicals and acids. |
| Export to | Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc |
| PN6-PN40 DIN Flanges Application | To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Shawn Flanges, a premier supplier in Houston, USA, specializes in high-quality PN6-PN40 DIN Flange, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Shawn Flanges’ PN6-PN40 DIN Flanges find extensive use in water treatment facilities, chemical processing plants, the food and beverage sector, oil and gas pipelines, and power generation sites. With pressure ratings spanning from PN6 to PN40, they are adaptable for low to medium-high pressure applications, including industrial piping, HVAC systems, and fire protection networks. These flanges guarantee secure, leak-proof connections that meet European standards. Shawn Flanges is committed to precision manufacturing and quality assurance, delivering flanges that promise a reliable service life and seamless integration into DIN-compliant piping systems around the globe.
Flange Nominal Diameter | Pressure Rating (PN) | |||||
|---|---|---|---|---|---|---|
**Nominal BSP Pipe Size | PN6 | PN10 | PN16 | PN25 | PN40 | |
| DN 10 | 75 | 90 | 90 | 90 | 90 | O.D. |
| 3/8″ | 50 | 60 | 60 | 60 | 60 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes |
| DN 15 | 80 | 95 | 95 | 95 | 95 | O.D. |
| 1/2″ | 55 | 65 | 65 | 65 | 65 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 20 | 90 | 105 | 105 | 105 | 105 | O.D. |
| 3/4 | 65 | 75 | 75 | 75 | 75 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 25 | 100 | 115 | 115 | 115 | 115 | O.D. |
| 1 | 75 | 85 | 85 | 85 | 85 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 32 | 120 | 140 | 140 | 140 | 140 | O.D. |
| 1 1/4″ | 90 | 100 | 100 | 100 | 100 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 40 | 130 | 150 | 150 | 150 | 150 | O.D. |
| 1 1/2″ | 100 | 110 | 110 | 110 | 110 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 50 | 140 | 165 | 165 | 165 | 165 | O.D. |
| 2″ | 110 | 125 | 125 | 125 | 125 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 65 | 160 | 185 | 185 | 185 | 185 | O.D. |
| 2 1/2″ | 130 | 145 | 145 | 145 | 145 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 8 x 18 | 8 x 18 | # of holes x diam. of holes | |
| DN 80 | 190 | 200 | 200 | 200 | 200 | O.D. |
| 3″ | 150 | 160 | 160 | 160 | 160 | PCD (bolt circle) |
| 4 x 18 | 8 x 18 | 8 x 18 | 8 x 18 | 8 x 18 | # of holes x diam. of holes | |
| DN 100 | 210 | 220 | 220 | 235 | 235 | O.D. |
| 4″ | 170 | 180 | 180 | 190 | 190 | PCD (bolt circle) |
| “ | 4 x 18 | 8 x 18 | 8 x 18 | 8 x 22 | 8 x 22 | # of holes x diam. of holes |
DN 125 | ||||||
Yes, we offer custom sizes for PN6-PN40 DIN Flange to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
