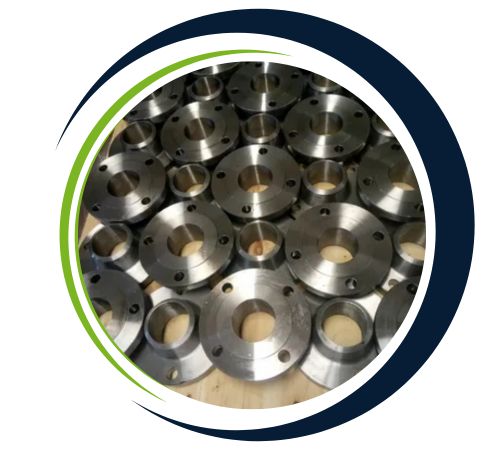

Shawn Flanges, located in Houston, USA, is a reliable manufacturer and supplier of SS400 Flanges, which are popular for their excellent weldability, strength, and affordability in structural and general-purpose applications. SS400 is a carbon-manganese structural steel grade that’s commonly used to create flanges for low to moderate pressure systems. Shawn Flanges provides a full range of SS400 flange types, including weld neck, slip-on, blind, threaded, socket weld, and lap joint, all made in accordance with JIS B2220, ASME B16.5, and DIN standards. The company caters to various industries such as construction, oil & gas, water treatment, and manufacturing.
SS400 Flanges from Shawn Flanges are primarily made up of carbon (≤0.25%), manganese (≤1.4%), phosphorus (≤0.050%), and sulfur (≤0.050%), with iron as the main component. These flanges boast a tensile strength ranging from 400 to 510 MPa and a yield strength of at least 245 MPa, along with good ductility and toughness at room temperature. SS400 is known for its excellent machinability, weldability, and formability, making it a dependable choice for standard pressure piping systems. While it’s not ideal for corrosive or high-temperature settings, it excels in low-pressure structural and industrial applications.
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of SS400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | ASTM SS400 and ASME SS400 |
|---|---|
| ASME B16.5 Carbon Steel SS400 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel SS400 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel SS400 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel SS400 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel SS400 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel SS400 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel SS400 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Carbon Steel SS400 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Large Male-Female (LMF), Flat Face (FF), Lap-Joint Face (LJF), Male-Female (SMF), Small Tongue & Groove, Large Tongue & Groove |
| Most common types of Carbon Steel SS400 Flanges |
|
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Carbon Steel SS400 Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Specialized manufacturer of |
|
|
Element |
Weight % |
|
Carbon |
0.08 – 0.15 |
|
Silicon |
0.15 – 0.50 |
|
Manganese |
0.30 – 0.60 |
|
Phosphorus |
0.025 max * |
|
Sulphur |
0.025 max * |
|
Molybdenum |
0.90 – 1.10 |
|
Chromium |
2.00 – 2.50 |
|
Nickel |
0.5 max |
Property | Values |
Ultimate Tensile Strength * | 95 min Ksi (655 Mpa) |
0.2 % Yield Strength * | 75 min Ksi (517 Mpa) |
Elongation * | 17 % min |
Reduction of Area * | 35 % min |
Charpy Impact Toughness | 42 mean/ 33 min J at –18o C |
Hardness | 197 – 237 BHN (75 Ksi min) |
Shawn Flanges’ SS400 Flanges find extensive use in structural engineering, water pipelines, mechanical assemblies, and low-pressure industrial systems. They are perfect for construction frameworks, HVAC systems, fire protection lines, agricultural irrigation, and general plumbing tasks. Their ease of fabrication and dependable mechanical strength make them suitable for storage tanks, conveyor systems, and machinery components. SS400 flanges are frequently used in both indoor and outdoor settings where moderate loads and temperatures are expected. Shawn Flanges guarantees that every product adheres to international quality standards for durability.
Yes, we offer custom sizes for SS400 Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
