Located in Houston, Texas, Shawn Flanges is a leading producer and supplier of stainless steel 304 flanges, offering dependable and effective solutions to a variety of industries. Shawn Flanges, which is renowned for its engineering precision and rigorous adherence to international quality standards, manufactures 304 flanges with exceptional strength, durability, and resistance to corrosion. These flanges guarantee leak-proof connections and operational safety, making them perfect for high-pressure and high-temperature applications. Shawn Flanges serves both domestic and foreign markets with a dedication to quality, prompt delivery, and total customer satisfaction thanks to its well-equipped manufacturing facility and skilled staff.
The austenitic stainless steel alloy used to make stainless steel 304 flanges has about 18% chromium and 8% nickel, with iron and trace elements like manganese and silicon making up the remaining portion. Excellent formability and corrosion resistance are guaranteed by this composition. They have a mechanical tensile strength of about 515 MPa, a yield strength of about 205 MPa, and an elongation of about 40%. Because the flanges are non-magnetic when annealed and retain good toughness even at cryogenic temperatures, they can be used in a variety of industrial settings.
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards | ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard s | ANSI, ASME, BS, DIN, EN etc. |

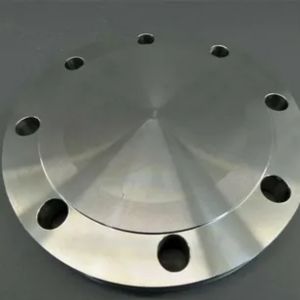

Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Stainless Steel 304 flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Because of their strength, resistance to corrosion, and adaptability, stainless steel 304 flanges are widely used in many different industries. They are widely used in the food and beverage, pharmaceutical, oil and gas, water treatment, power generation, and chemical processing industries. Connecting pipes, valves, pumps, and other equipment with these flanges makes it simple to inspect, clean, or modify the equipment. Long-term performance in both indoor and outdoor environments is guaranteed by their durability, and their non-reactive nature makes them perfect for hygienic applications. SS 304 flanges provide dependable and secure pipeline integration in corrosive process lines or marine environments.
| NPS (in.) | Stainless Steel 304 Flanges Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) | No. of Bolts | Dia. of Bolts (in.) | Dia. of Bolt Holes (in.) | Bolt Circle (in.) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Yes, we offer custom sizes for Stainless Steel 304 flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
