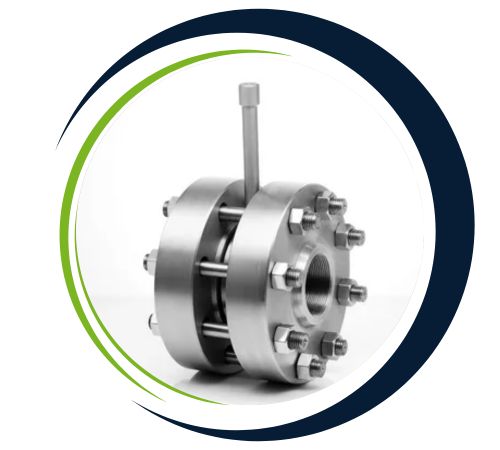

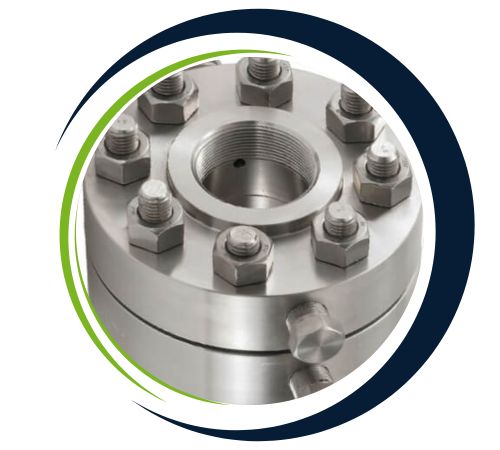

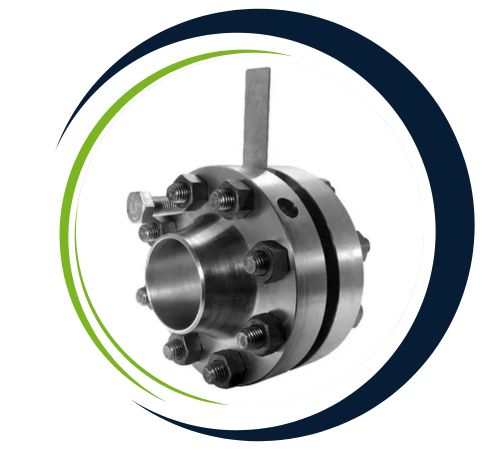

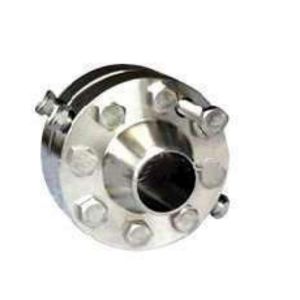

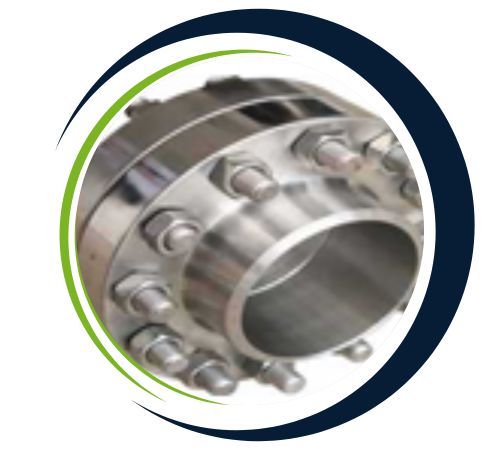

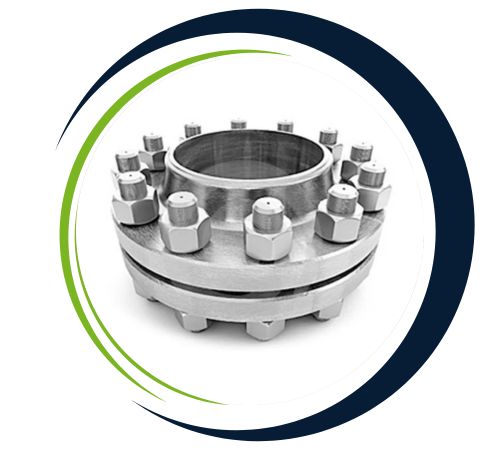

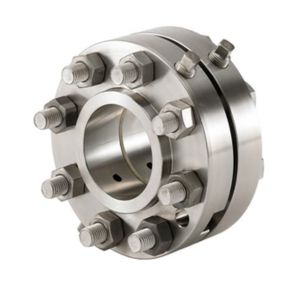

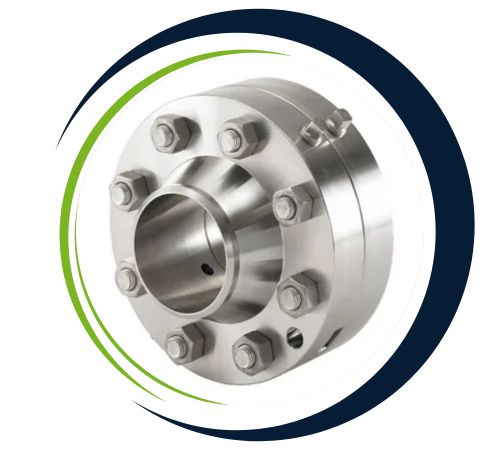

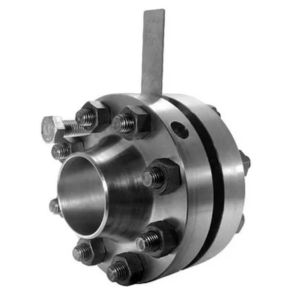

Shawn Flanges, based in Houston, USA, is a well-respected manufacturer and supplier of high-performance Nickel Alloy Orifice Flanges. These flanges are crafted with precision and built to last, specifically designed for flow measurement in critical piping systems. We provide a range of orifice flanges made from various nickel alloy grades, ensuring top-notch corrosion resistance and mechanical strength even in extreme temperatures and pressures. Catering to industries like oil & gas, chemical processing, and power generation, Shawn Flanges is dedicated to delivering quality products, prompt service, and flanges that comply with ANSI, ASME, and international standards for demanding industrial applications
Nickel Alloy Orifice Flanges are generally constructed from nickel-based alloys such as Alloy 200, 201, 400, and Inconel grades. These alloys are primarily made up of nickel (up to 99%) along with different amounts of copper, chromium, iron, and molybdenum. They provide exceptional corrosion resistance in acidic and high-temperature settings. Their mechanical properties include a tensile strength ranging from 450 to 690 MPa, yield strength between 170 and 350 MPa, and elongation of 30 to 45%. These flanges ensure excellent mechanical stability and thermal resistance, making them perfect for precise flow measurement in aggressive media and challenging process conditions.
Shawn Flanges, a premier supplier in Houston, USA, specializes in high-quality Nickel Alloy Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Nickel 200 | 2.4066 | N02200 |
| Nickel 201 | 2.4068 | N02201 |
Nickel Alloy Orifice Flanges are extensively utilized in industries that require accurate flow measurement and control in corrosive and high-pressure environments. They’re commonly found in oil & gas refineries, petrochemical plants, power stations, and marine systems. When paired with orifice plates and pressure taps, these flanges play a crucial role in differential pressure flow metering for pipelines carrying steam, gas, or aggressive fluids. Their ability to resist corrosion, heat, and chemical attacks makes them ideal for critical operations in offshore platforms, chemical reactors, and high-purity process systems. Plus, they are easy to install and maintain, ensuring reliable, long-term performance.
Yes, we offer custom sizes for Nickel Alloy Orifice Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
