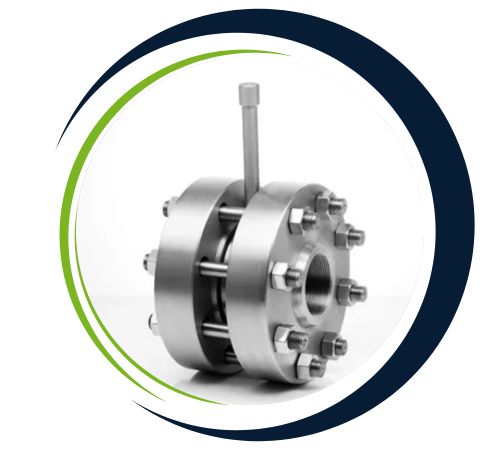

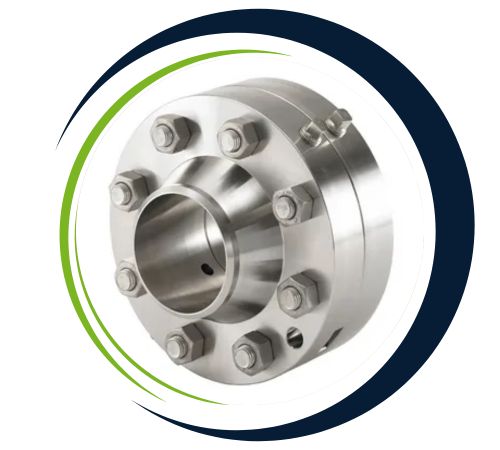

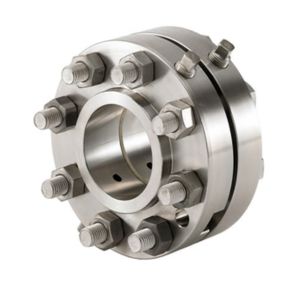

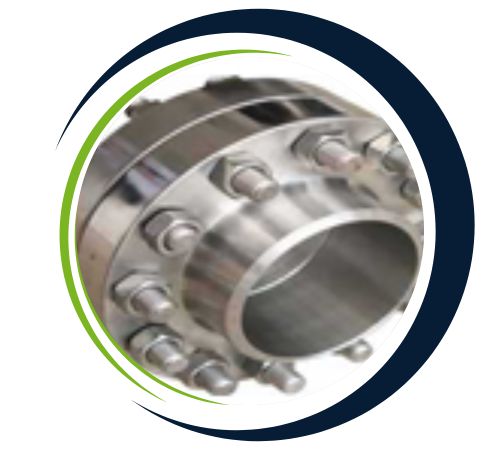

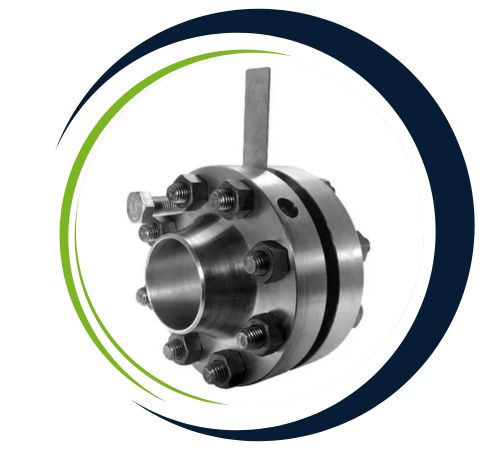

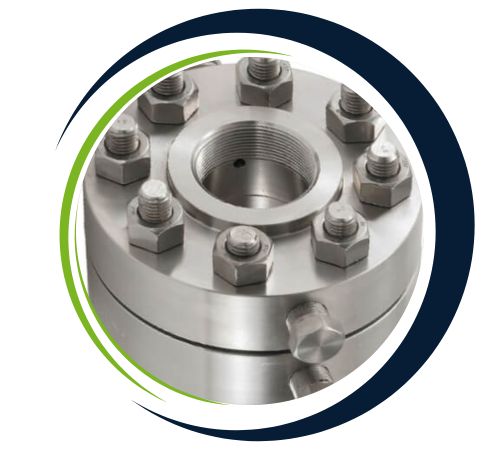

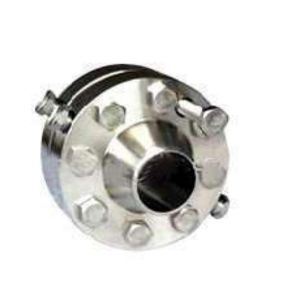

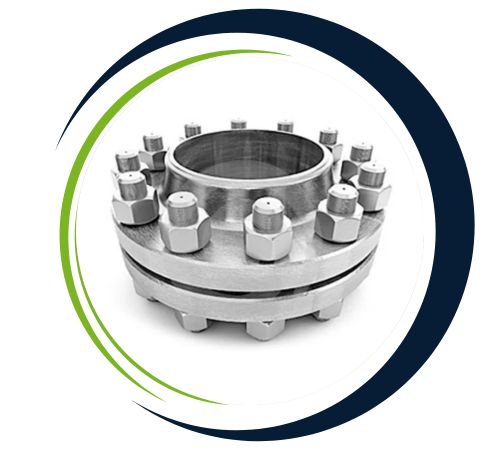

Shawn Flanges, a trusted manufacturer and supplier located in Houston, USA, specializes in high-quality Inconel Orifice Flanges that are crafted for precise flow measurement and control in tough industrial settings. Built to meet international standards, these flanges are designed to work seamlessly with orifice plates, allowing for accurate measurement of liquids, gases, or steam in pipelines. With their outstanding durability, accuracy, and leak-proof performance, Shawn Flanges has made Inconel Orifice Flanges the go-to choice for industries like oil & gas, petrochemical, chemical processing, and power generation, where safety and precision are paramount.
Inconel Orifice Flanges are constructed of a nickel-chromium alloy, with outstanding resistance to oxidation, corrosion and heat. Their composition is usually nickel (58-72%) chromium (14-17%) and steel, with traces of molybdenum and cobalt for added strength These flanges have remarkable mechanical properties, such as high tensile strength (up to 105 ksi ) and superior thermal stability. Major benefits are superior durability in harsh conditions, low maintenance and chemical deterioration resistance, making it suited for intricate applications like the petrochemical, aerospace and marine sectors.
Shawn Flanges, a premier supplier in Houston, USA, specializes in high-quality Inconel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe | – |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | – |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – | – |
Inconel orifice flanges are mostly employed in hot and humid conditions, including in aerospace, chemical processing, and power plants. These flanges are meant to quantify fluid flow with space installation of orifice plate. Its oxidation and corrosion-resistant nature makes Inconel fit for use when water is pressurized as well as elevated temperature, such as in heat exchangers and reactors, and gas turbines, and the toughness and ruggedness of their construction provide guaranteed free freeway operations. The value of aggressive reporting.
Yes, we offer custom sizes for Inconel Orifice Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
