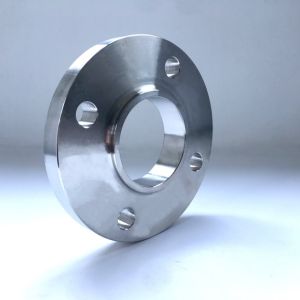

Shawn Flanges is a reliable manufacturer and supplier of Hastelloy C22 Flanges based in Houston, USA. We specialize in providing high-performance solutions tailored for critical industrial applications. Our flanges are well-known for their remarkable resistance to oxidation, crevice corrosion, and stress-related cracking, even in harsh environments. With a commitment to precision engineering and strict adherence to international standards, Shawn Flanges guarantees exceptional durability and reliability in every product. Our Hastelloy C22 Flanges come in a variety of sizes, pressure ratings, and specifications, catering to the diverse needs of industries like chemical processing, marine, oil & gas, power generation, and pharmaceuticals, making them the go-to choice for demanding operations.
Hastelloy C22 Flanges are mainly made up of nickel, chromium, molybdenum, and tungsten, which provide outstanding resistance to both oxidizing and reducing agents. The high nickel content boosts corrosion resistance, while chromium offers superior strength against oxidizing media. Molybdenum and tungsten enhance resistance to pitting and crevice corrosion, especially in chloride-rich environments. On the mechanical side, these flanges showcase excellent tensile strength, good yield strength, and impressive toughness, even at elevated temperatures. They maintain their structural integrity under high pressure and thermal stress, making them perfect for tough environments where durability and safety are paramount.
| C22 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| Alloy C22 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C22 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C22 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C22 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C22 Forged Fittings Thread | NPT, BSPT, BSPP |
| C22 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C22 Forged Fittings Origin & Mills | USA |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

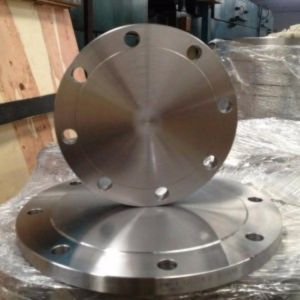

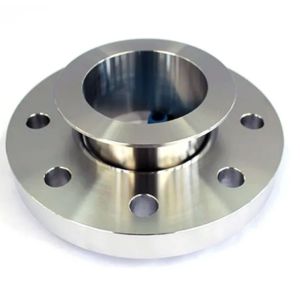

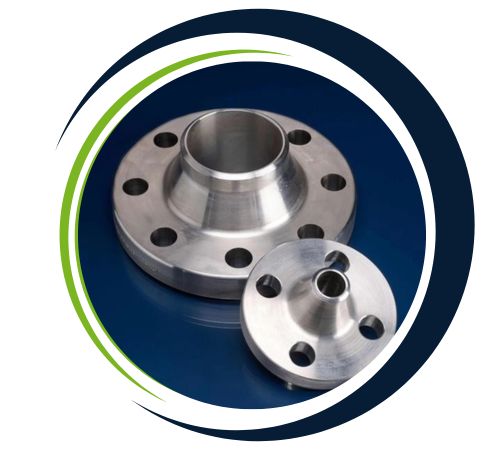

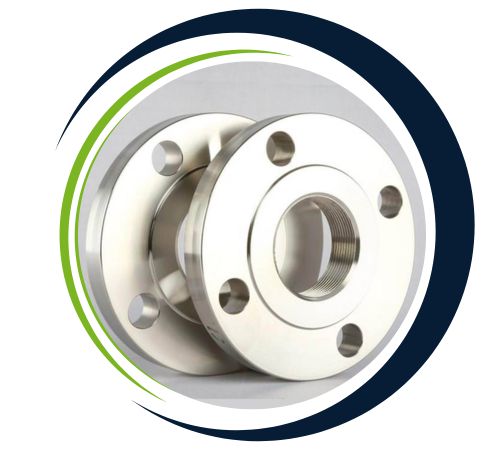

Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Hastelloy C22 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy C22 flanges are widely used in applications where high corrosion resistance is required. Such as pharmaceutical, petrochemical, oil and gas, energy generation and provide safe connections to systems handling aggressive chemicals including acid, chloride and solvents including handling. Commonly used in reactors heat exchangers, pipelines and pressure vessels. Hastelloy C22 flanges ensure durability under high temperature and high pressure conditions. They are also popular in the marine and chemical industries. Where important to resist compression, corrosion cracking and pitting. Hastelloy C22 flanges provide long-term reliability reduce maintenance costs and increase system performance in harsh environments.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C22 Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | – | NiCr21Mo14W | NW 6022 | – | – |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
