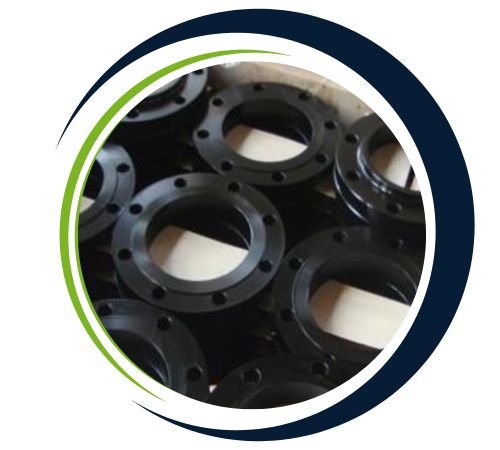

Shawn Flanges, located in Houston, USA, has built a solid reputation as a reliable manufacturer and supplier of Carbon Steel F80 Flanges. They provide top-notch flange solutions tailored for demanding industrial piping systems. These flanges are crafted to meet international standards, ensuring they can withstand high pressure and temperature applications where strength, reliability, and leak-proof performance are crucial. Renowned for their durability, precision, and cost-effectiveness, Shawn Flanges’ Carbon Steel F80 Flanges find their way into various sectors, including oil and gas, petrochemical, marine, chemical, and power generation. With a commitment to strict quality control, advanced manufacturing techniques, and timely delivery, Shawn Flanges efficiently supports both domestic and global projects.
Typically, Carbon Steel F80 Flanges are made from forged carbon steel, which includes elements like carbon, manganese, silicon, phosphorus, and sulfur, giving them impressive strength and toughness. This specific chemical makeup not only enhances their weldability and machinability but also ensures they remain durable under stress. Mechanically, these flanges boast high tensile and yield strength, good ductility, and impact resistance, making them perfect for critical pressure piping systems. Their sturdy construction and precision-machined faces guarantee reliable sealing and a long service life, even when faced with fluctuating pressure and temperature conditions.
| Standards | ANSI/ASME B16.5, EN Flanges, BS 10, B16.47 Series A & B, EN-1092, ASME Flanges, BS Flanges, B16.48, DIN, DIN Flanges, GOST Flanges, ANSI Flanges, BS4504. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Production technique | Forged, Heat treated and machined |
| Special design | As per your drawing |
| AS, ANSI, BS, DIN and JIS | |
| 15 NB (1/2″) to 200 NB (8″) | |
| Equal and Reducing Configurations | |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Small Tongue, Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Tongue & Groove, Large Male-Female (LMF). |
| Largest Bore Diameter Sizes | NPS ≤ 10 |
| Minimum & Maximum Size | 1/2″ To 48″ |
| Origin | Indian / Japan / Korean / West Europe / USA |
| JIS Standard | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| A182 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Test Certificates | EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc. | |
| Application | Gas, Power, Chemical, Metallurgy, Petroleum, Shipbuilding, Construction etc. |
|
Grade |
P |
S |
Mo |
Ni |
Cr |
C |
Si |
Mn |
Cu |
V |
|
A694 |
0.035 |
0.040 |
0.12 |
0.40 |
0.30 |
0.35 |
0.10–0.35 |
0.60–1.05 |
0.40 |
0.08 |
| Grade | Tensile Strength, Min (MPa) | Yield Strength, Min (MPa ) | Elongation, min, % |
|---|---|---|---|
| A694 | 485 | 250 | 30 |

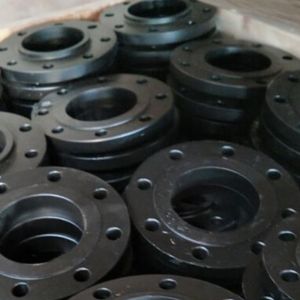

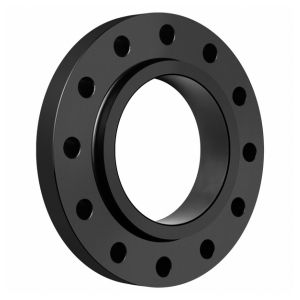

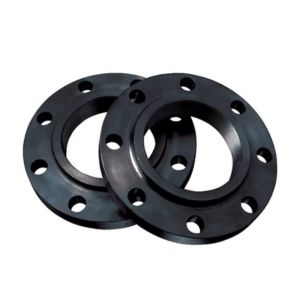

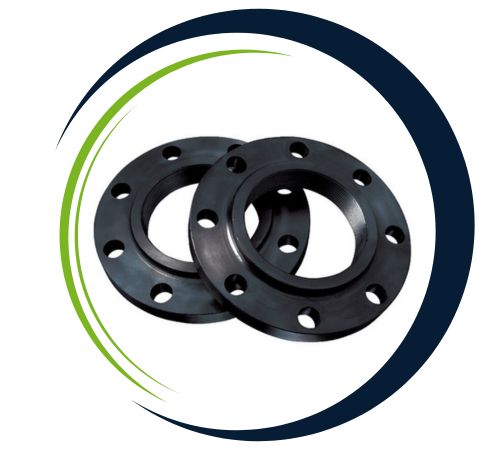

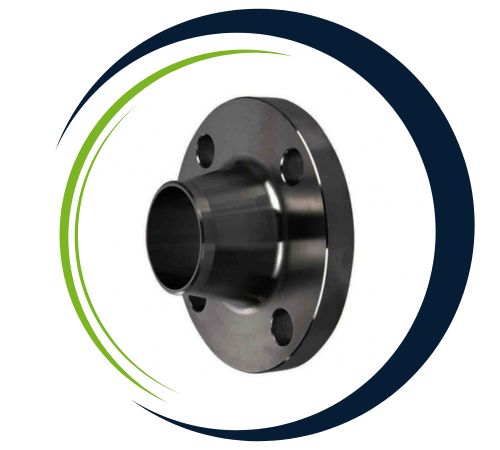

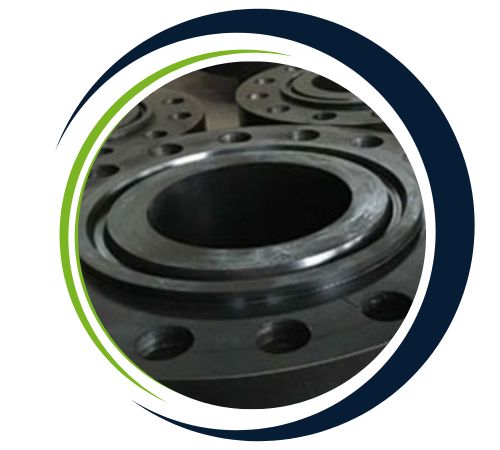

Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Carbon Steel F80 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Carbon Steel F80 Flanges commonly used in oil refineries, offshore platforms, chemical plants, power stations, shipbuilding, and gas processing facilities. They’re ideal for connecting valves, pumps, heat exchangers, and pipelines, ensuring safe and secure joints for transporting oil, gas, steam, or other fluids under pressure. Their ability to maintain integrity in harsh working conditions makes them a go-to choice for both onshore and offshore environments. Durable, efficient, and versatile, Carbon Steel F80 Flanges are the preferred option for industries in search of reliable flange solutions for high-performance piping networks.
Yes, we offer custom sizes for Carbon Steel F80 Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
