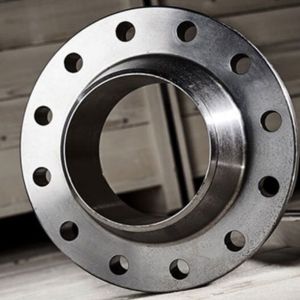

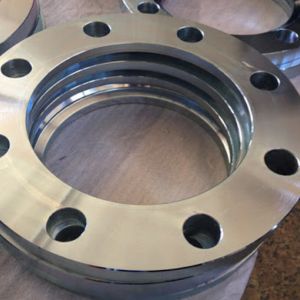

Shawn Flanges stands out as a top manufacturer and supplier of Alloy Steel Forged Flanges right in Houston, USA. They pride themselves on delivering high-quality products that are built for exceptional strength and durability. Crafted from premium chromium-molybdenum alloy steel, these flanges boast impressive resistance to pressure, temperature, and corrosion, making them perfect for critical industrial applications. With precision engineering and adherence to international standards, you can count on their reliability, dimensional accuracy, and leak-proof performance. Available in various styles like weld neck, slip-on, socket weld, blind, and threaded, Alloy Steel Forged Flanges are essential in industries such as oil & gas, petrochemical, chemical, power generation, and marine, where robust and long-lasting piping solutions are a must.
Alloy Steel Forged Flanges are made up of a blend of chromium, molybdenum, carbon, manganese, silicon, and a few trace elements like nickel or vanadium. The chromium in the mix boosts oxidation and corrosion resistance, while molybdenum adds strength, creep resistance, and hardness even at high temperatures. The forging process refines the grain structure, enhancing toughness and fatigue strength. On the mechanical side, these flanges deliver high tensile and yield strength, outstanding impact resistance, and excellent dimensional stability, even when faced with fluctuating pressure and thermal conditions. Their strong composition, combined with advanced forging technology, guarantees a long service life, making them a reliable choice for heavy-duty and high-performance industrial piping systems.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Alloy Steel F1, F5, F9, F11, F22, F91 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of Alloy Steel Forged Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy Steel Forged Flanges benefit from being applicable in numerous different industries because they are strong, durable and also resistant to corrosion. Common industries include oil, gas, power plants and manufacturing, as well as petrochemicals. These flanges form a solid joint with the piping systems, delivering high performance under extreme pressures and temperatures. Due to their durability in extreme environmental conditions, they find application in critical systems that involve steam, water, chemicals, and other demanding resources, and so on. Alloy-metal flanges are also common in construction applications because of their increased mechanical properties.
| ASME/ANSI B 16.5 | Forged Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Forged Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Forged Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Forged |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| STANDARD | DIN WERKSTOFF NR. | UNS |
| Alloy F1 | 1.5415 | K12822 |
| ASTM A182 F5 | 1.7362 | K41545 |
| ASTM A182 F9 | 1.7386 | K90941 |
| ASTM A182 F11 | 1.7335 | K11597 |
| ASTM A182 F22 | 1.7380 | K21590 |
| ASTM A182 F91 | 1.4903 | K21590 |
Yes, we offer custom sizes for Alloy Steel Forged Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
