EN 1092-1 Type 02 Flanges Manufacturer and Supplier in Houston, USA

Let’s take a look at the text: Shawn Flanges is a reputable manufacturer and supplier located in Houston, USA, focusing on high-quality EN 1092-1 Type 02 Flanges. Renowned for their precision, durability, and adherence to global standards, this company caters to various industries, including oil and gas, petrochemical, power generation, water treatment, and shipbuilding. The EN 1092-1 Type 02 Flanges produced by Shawn Flanges are crafted using cutting-edge technology and rigorous quality controls, guaranteeing outstanding strength, resistance to corrosion, and dependable leak-proof connections. With a strong commitment to customer satisfaction, prompt delivery, and technical know-how, Shawn Flanges has established itself as a go-to partner for reliable piping solutions in complex industrial operations around the globe.

EN 1092-1 Type 02 Loose Flange In USA, EN 1092-1 Type 02 Forged Flanges United kingdom, EN 1092-1 Type 02 PN10 Flange Houston, EN 1092-1 Type 02 Plate Flange Los Angeles, Raised Face EN 1092-1 Type 02 Flanges Houston, EN 1092-1 Type 02 Flanges Manufacturer in Texas, EN 1092-1 Type 02 Flanges In California.

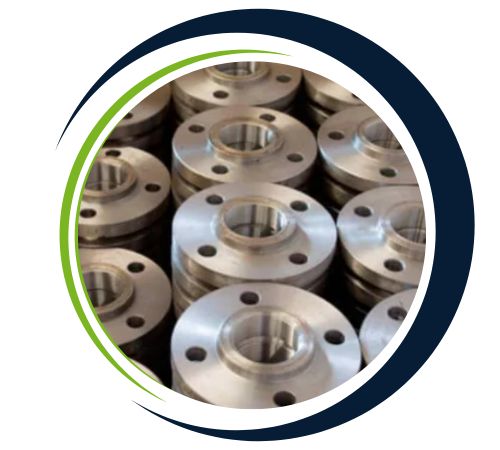

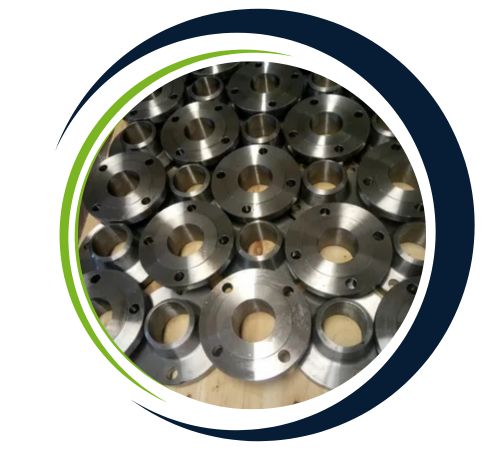

EN 1092-1 Type 02 Flanges

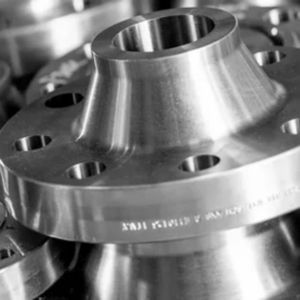

EN 1092-1 Type 02 Loose Flange

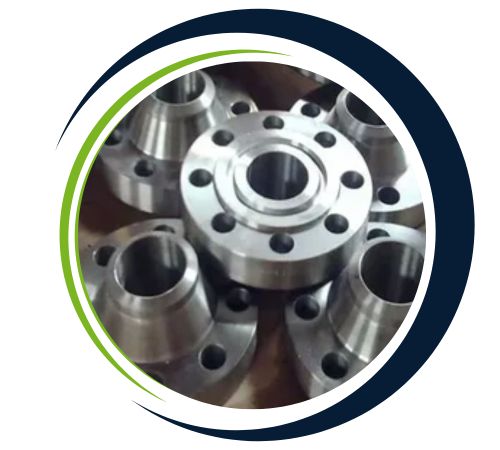

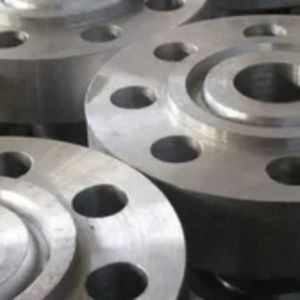

EN 1092-1 Type 02 Forged Flanges

These flanges are primarily constructed from carbon steel, stainless steel, or alloy steel, tailored to meet the pressure and temperature demands of the system. Their composition typically includes elements like carbon, manganese, silicon, chromium, nickel, and molybdenum, which enhance both strength and corrosion resistance. EN 1092-1 Type 02 Flanges boast high tensile strength, excellent toughness, and dependable yield properties, ensuring safe and long-lasting performance. They also provide good elongation and impact resistance, making them well-suited for challenging industrial environments. Their robust mechanical properties ensure structural stability and secure connections in a variety of fluid and gas transport systems.

EN 1092-1 Type 02 Flanges Stockist in USA, EN 1092-1 Type 02 Flanges Supplier in United kingdom, EN 1092-1 Type 02 Flanges Supplier in Houston, EN 1092-1 Type 02 Flanges Manufacturer in Los Angeles, EN 1092-1 Type 02 Flanges Manufacturer in Houston, EN 1092-1 Type 02 Flanges Stockist in Texas, EN 1092-1 Type 02 Flanges California.

Largest EN 1092-1 Type 02 Flanges in Houston, USA

Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of EN 1092-1 Type 02 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

EN 1092-1 Type 02 Flanges Specification

Size	(1/2″) To (48″)
Pressure	PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
Size Of Bore Diameter Flange	NPS ≤ 10
Standard Dimensions	EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API.
Minimum Pressure	150# To 2500#
Flange Face Type Manufacturer	Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face.
Top Six Type Of Flange	Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange
Standard Materials	Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel.
Thickness Length	NPS ≤ 18
Manufacturing Process	Forged/ Machined/ Heat Treated
Other Type Of Flange	Forged/ Plate/ Threaded

EN 1092-1 TYPE 02 PN10 LOOSE FLANGE DIMENSIONS

Rated Diameter	Flange					Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	k	D	b	e	d2	Thread	Bolt holes	KG
15	25	65	95	14	3	14	M12	4	0,654
20	31	75	105	16	4	14	M12	4	0,913
25	38	85	115	16	4	14	M12	4	1,081
32	47	100	140	18	5	18	M16	4	1,781
40	53	110	150	18	5	18	M16	4	2,035
50	65	125	165	20	5	18	M16	8	2,520
65	81	145	185	20	6	18	M16	8	3,050
80	94	160	200	20	6	18	M16	8	3,480
100	120	180	220	22	6	18	M16	8	4,200
125	145	210	250	22	6	18	M16	8	5,210
150	174	240	285	24	6	22	M20	8	6,890
200	226	295	340	24	6	22	M20	8	8.870
250	281	350	395	26	8	22	M20	12	11,200
300	333	400	445	26	8	22	M20	12	12,800
350	365	460	505	30	8	22	M20	16	19,400
400	416	515	565	32	8	26	M24	16	26,400
450	467	565	615	36	8	26	M24	20	32,200
500	519	620	670	38	8	26	M24	20	38,500
600	622	725	780	42	8	30	M27	20	52,200
700	721	840	895	50	8	30	M27	24	79,400
800	824	950	1015	56	8	33	M30	24	112,000
900	926	1050	1115	62	8	33	M30	28	135,000

EN 1092-1 TYPE 02 PN16 LOOSE FLANGE DIMENSIONS

Rated Diameter	Flange					Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	k	D	b	e	d2	Thread	Bolt holes	KG
15	25	65	95	14	3	14	M12	4	0,655
20	31	75	105	16	4	14	M12	4	0,913
25	38	85	115	16	4	14	M12	4	1,081
32	47	100	140	18	5	18	M16	4	1,781
40	53	110	150	18	5	18	M16	4	2,035
50	65	125	165	20	5	18	M16	4	2,668
65	81	145	185	20	6	18	M16	4	3,241
80	94	160	200	20	6	18	M16	8	3,512
100	120	180	220	22	6	18	M16	8	4,247
125	145	210	250	22	6	18	M16	8	5,258
150	174	240	285	24	6	22	M20	8	6,945
200	226	295	340	26	6	22	M20	12	9,383
250	281	355	405	29	8	26	M24	12	13,717
300	333	410	460	32	8	26	M24	12	18,213
350	365	470	520	35	8	26	M24	16	27,184
400	416	525	580	38	8	30	M27	16	34,789
450	467	585	640	42	8	30	M27	20	44,793
500	519	650	715	46	8	33	M30	20	62,227
600	622	770	840	55	8	36	M33	20	98,983
700	721	840	910	63	8	36	M33	24	107,32
800	824	950	1025	74	8	39	M36	24	152,44

These flanges are extensively utilized for connecting pipes, valves, pumps, and other equipment across different industries. You’ll find them in chemical plants, oil refineries, power generation facilities, marine applications, water supply networks, and HVAC systems. Their precise design facilitates easy assembly, inspection, and maintenance of piping systems while ensuring leak-tight seals. These flanges are compatible with both low- and high-pressure systems, offering versatility for a range of industrial needs. Plus, they align with multiple international standards and pipe materials, making them a reliable choice for any project.

EN 1092-1 Type 02 Loose Flange In USA, EN 1092-1 Type 02 Forged Flanges United kingdom, EN 1092-1 Type 02 PN10 Flange Houston, EN 1092-1 Type 02 Plate Flange Los Angeles, Raised Face EN 1092-1 Type 02 Flanges Houston, EN 1092-1 Type 02 Flanges Manufacturer in Texas, EN 1092-1 Type 02 Flanges In California.

Types of EN 1092-1 Type 02 Flanges

Are Custom Sizes Available for EN 1092-1 Type 02 Flanges?

Yes, we offer custom sizes for EN 1092-1 Type 02 Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
