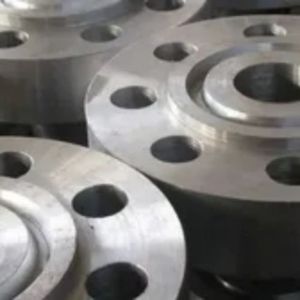

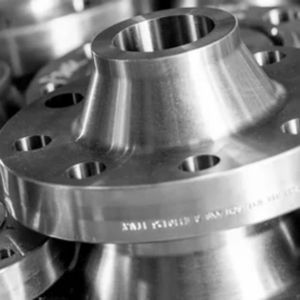

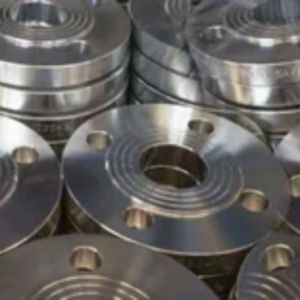

Shawn Flanges, located in Houston, USA, is a reliable manufacturer and supplier of DIN 2573 PN6 slip-on flanges, providing top-notch piping components for low-pressure industrial and commercial uses. Renowned for their precision manufacturing and commitment to international standards, Shawn Flanges offers DIN 2573 PN6 slip-on flanges that ensure secure, leak-proof, and durable connections. These flanges are perfect for systems that require easy assembly and alignment. With competitive pricing, prompt delivery, and a variety of sizes, materials, and specifications available, Shawn Flanges is dedicated to delivering dependable solutions tailored to the unique needs of industries around the globe.
The DIN 2573 PN6 slip-on flanges are crafted from high-quality materials like carbon steel, stainless steel, and alloy steel, ensuring they are strong, durable, and resistant to corrosion. They boast impressive mechanical properties, including good tensile strength and toughness, making them ideal for efficient operation under low-pressure conditions (PN6). Designed to slide over the pipe and be welded at the hub, these flanges create a secure, leak-proof connection while allowing for straightforward alignment and installation in piping systems.
Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Germany standard flange DIN 2573 for soldering or welding Nominal Pressure 6 | |||||||||||
| Pipe | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||||
| Rated Diameter | d1 | d5 | D | b | c | k | Holes | Thread | d2 | Kg | |
| ISO Series 1 | DIN Series 2 | ||||||||||
| 15 | – | 20 | 21 | 80 | 12 | 5 | 55 | 4 | M 10 | 11 | 0,41 |
| 21,3 | – | 22 | |||||||||
| 20 | – | 25 | 26 | 90 | 14 | 5 | 65 | 4 | M 10 | 11 | 0,60 |
| 26,9 | – | 27,6 | |||||||||
| 25 | – | 30 | 31 | 100 | 14 | 5 | 75 | 4 | M 10 | 11 | 0,74 |
| 33,7 | – | 34,4 | |||||||||
| 32 | – | 38 | 39 | 120 | 16 | 5 | 90 | 4 | M 12 | 14 | 1,19 |
| 42,4 | – | 43,1 | |||||||||
| 40 | – | 44,5 | 45,5 | 130 | 16 | 5 | 100 | 4 | M 12 | 14 | 1,39 |
| 48,3 | – | 49 | |||||||||
| 50 | – | 57 | 58,1 | 140 | 16 | 6 | 110 | 4 | M 12 | 14 | 1,53 |
| 60,3 | – | 61,1 | |||||||||
| 65 | 76,1 | – | 77,1 | 160 | 16 | 6 | 130 | 4 | M 12 | 14 | 1,89 |
| 80 | 88,9 | – | 90,3 | 190 | 18 | 7 | 150 | 4 | M 16 | 18 | 2,98 |
| 100 | – | 108 | 109,6 | 210 | 18 | 7 | 170 | 4 | M 16 | 18 | 3,46 |
| 114,3 | – | 115,9 | |||||||||
| 125 | – | 133 | 134,8 | 240 | 20 | 7 | 200 | 8 | M 16 | 18 | 4,60 |
| 139,7 | – | 141,6 | |||||||||
| 150 | – | 159 | 161,1 | 265 | 20 | 7 | 225 | 8 | M 16 | 18 | 5,22 |
| 168,3 | – | 170,5 | |||||||||
| 200 | 219,1 | – | 221,8 | 320 | 22 | 7 | 280 | 8 | M 16 | 18 | 7,15 |
| 250 | – | 267 | 270,2 | 375 | 24 | 7 | 335 | 12 | M 16 | 18 | 9,61 |
| 273 | – | 276,2 | |||||||||
| 300 | 323,9 | – | 327,6 | 440 | 24 | 7 | 395 | 12 | M 20 | 22 | 12,60 |
| 350 | 355,6 | – | 359,7 | 490 | 26 | 7 | 445 | 12 | M 20 | 22 | 15,60 |
| – | 368 | 372,2 | |||||||||
| 400 | 406,4 | – | 411 | 540 | 28 | 7 | 495 | 16 | M 20 | 22 | 18,40 |
| – | 419 | 423,7 | |||||||||
| (450)* | 457 | – | 462,5 | 595 | 30 | 7 | 550 | 16 | M 20 | 22 | 21,40 |
| 500 | 508 | – | 531,6 | 645 | 30 | 7 | 600 | 20 | M 20 | 22 | 24,60 |
You’ll find DIN 2573 PN6 slip-on flanges commonly used in water supply systems, low-pressure pipelines, HVAC networks, chemical processing units, and power generation facilities. They are well-suited for connecting pipes, valves, and pumps in setups where moderate strength and cost-effective connections are essential. Their ease of installation, maintenance, and inspection makes them a go-to choice for industries looking for safe, efficient, and long-lasting piping solutions for low-pressure applications across various environments.
Yes, we offer custom sizes for DIN 2573 PN6 Slip On Flanges to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
