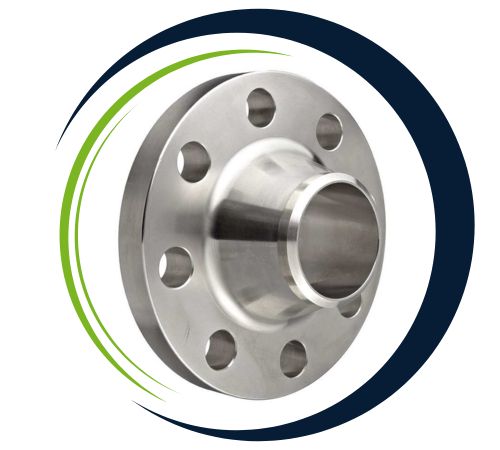

API – Type 6B Welding Neck Flanges rated for 5,000 PSI are usually crafted from high-strength carbon steel or alloy steel, like A105, L360, or similar grades. These flanges boast impressive mechanical properties, such as high tensile strength, yield strength, and toughness, making them perfect for high-pressure situations. They’re built to resist corrosion, wear, and thermal stresses, ensuring they remain durable and reliable over time. Plus, they comply with strict industry standards like ASME B16.5 and API specifications, delivering top-notch performance in challenging conditions where structural integrity and safety are paramount.
API Type 6B Welding Neck Flanges (5,000 PSI) are generally fabricated in carbon steel, alloy steel or stainless steel, as per specific application requirements. These flanges are designed for high tensile strength, corrosion resistance and long endurance. Typical mechanical properties are tensile strength 70,000 to 100,000 psi, yield strength 30,000 to 70,000 psi and elongation 20–35%. They are intended for use in stressful situations and deliver leak-proof, repeatable connections with extremely high fatigue life and maintain low potential failure in critical systems. The major benefits are ease of installation, good weldability and high service in harsh industrial environments.

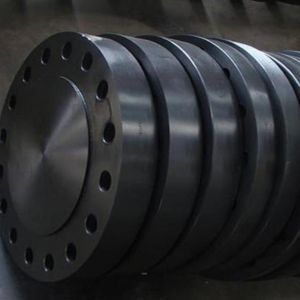

Shawn Flanges, a leading supplier in Houston, USA, offers an extensive selection of API – Type 6B Welding Neck Flanges 5,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specification Table Of : | API Type 6B Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Normal Pipe Sizes | Daimeter Of Flanges | Daimeter Of RTJ | Hight Of Flanges | Flanges Bolting | Flanges Hub | RING | ||||||||
| Normal Pipe Sizes | Outside Daimeter | C | K | P | T | Q | LN | BC | N | H | X | HL | JL | R / RX |
| 2-1/16″ | 215 | 3 | 124 | 95.25 | 46.1 | 38.1 | 109.5 | 165.10 | 8 | 26 | 104.8 | 60.3 | 43.7 | 24 |
| 2-9/16″ | 245 | 3 | 137 | 107.95 | 49.3 | 41.3 | 112.7 | 190.50 | 8 | 29 | 123.8 | 73.0 | 54.9 | 27 |
| 3-1/8″ | 265 | 3 | 168 | 136.53 | 55.6 | 47.7 | 125.4 | 203.20 | 8 | 32 | 133.3 | 88.9 | 67.5 | 35 |
| 4-1/16″ | 310 | 3 | 194 | 161.93 | 62.0 | 54.0 | 131.8 | 241.30 | 8 | 35 | 161.9 | 114.3 | 88.1 | 39 |
| 5-1/8″ | 375 | 3 | 229 | 193.68 | 81.0 | 73.1 | 163.5 | 292.10 | 8 | 42 | 196.8 | 141.3 | 110.3 | 44 |
| 7-1/16″ | 395 | 6 | 248 | 211.15 | 92.1 | 82.6 | 181.0 | 317.50 | 12 | 39 | 228.6 | 168.3 | 132.6 | 46 |
| 9″ | 485 | 6 | 318 | 269.88 | 103.2 | 92.1 | 223.8 | 393.70 | 12 | 45 | 292.1 | 219.1 | 173.8 | 50 |
| 11″ | 585 | 6 | 371 | 323.85 | 119.1 | 108.0 | 265.1 | 482.60 | 12 | 51 | 368.3 | 273.1 | 216.7 | 54 |
You’ll find API – Type 6B Welding Neck Flanges commonly used in the oil and gas, petrochemical, and power generation sectors. They’re ideal for pipelines, pressure vessels, and any equipment that needs robust high-pressure connections. These flanges excel in environments with extreme temperatures, corrosive fluids, and high-stress conditions, ensuring leak-proof joints in critical systems and enhancing operational safety and efficiency. Frequently utilized in refineries, offshore platforms, and chemical plants, these flanges provide secure attachment points and make maintenance easier while standing up to tough service conditions.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for API – Type 6B Welding Neck Flanges 5,000 PSI to meet specific project needs. Our team at Shawn Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@shawnflanges.us.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
